Sevenstars Double Wall Corrugated Pipe Extrusion Production Line Drain-pipe Making Machine

The Sevenstars Double Wall Corrugated Pipe Extrusion Production Line is a high-quality machine designed to produce durable and reliable drain pipes. Made by Sevenstars Machinery, this equipment is perfect for factories and businesses that need to make double wall corrugated pipes efficiently and with consistent quality. These pipes are widely used in drainage systems, construction, agriculture, and other industries where strong, flexible, and long-lasting pipes are essential.

This production line uses advanced technology to create double wall corrugated pipes, which means the pipes have a smooth inner wall and a corrugated outer wall. The smooth inner wall helps water or other fluids flow easily without blockage, while the corrugated outer wall adds strength and flexibility. This design makes the pipes ideal for carrying water or drainage materials underground or in places where pipes must bend or withstand pressure from soil or heavy loads.

The Sevenstars Double Wall Corrugated Pipe Extrusion Production Line includes several important parts: an extruder, a corrugated mold, a vacuum tank, a haul-off machine, a cutter, and a stacking system. The extruder heats and melts plastic raw materials, usually high-density polyethylene (HDPE), then pushes the melted plastic through the die to form the pipe’s shape. The corrugated mold shapes the outside of the pipe while the vacuum tank cools and solidifies it quickly. The haul-off machine pulls the pipe forward at the right speed, making sure the pipe keeps its shape. The cutter then cuts the finished pipe into the right lengths, and the stacking system organizes the pipes for easy collection.

One of the main benefits of this production line is that it can produce pipes in different sizes and thicknesses, depending on the customer's needs. It is also designed to work steadily and with high precision, reducing waste and saving materials. The machine is easy to operate and maintain, helping businesses lower their operating costs and improve production efficiency.

Sevenstars Machinery is known for making reliable and durable equipment, and this double wall corrugated pipe production line is no exception. It uses quality parts and modern control systems to ensure stable performance over long periods. Whether you are starting a new pipe manufacturing business or upgrading your current equipment, the Sevenstars Double Wall Corrugated Pipe Extrusion Production Line is a smart choice to help you produce top-quality drain pipes that meet industry standards

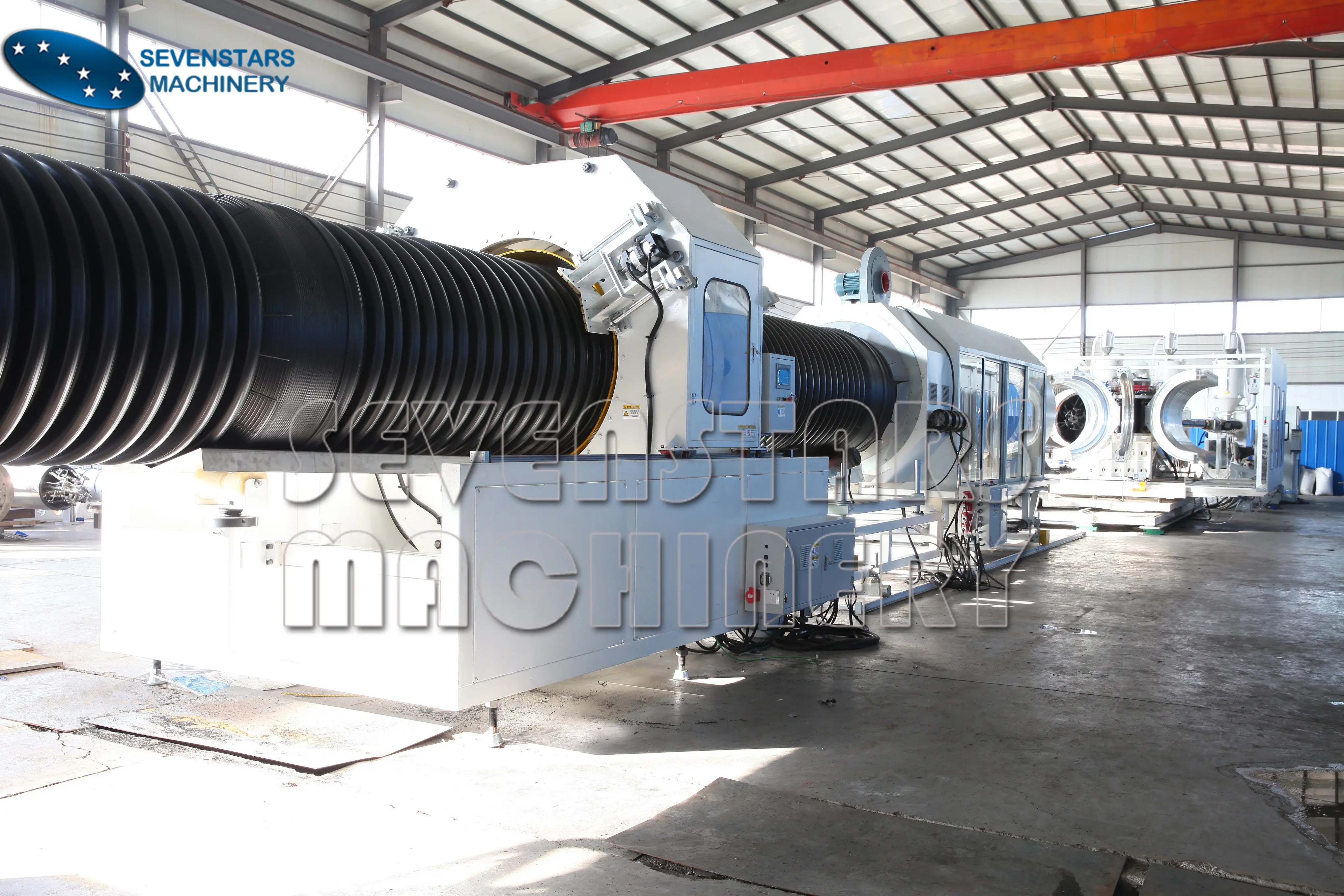

  Double-wall Corrugated Pipe Production Line

Product Description

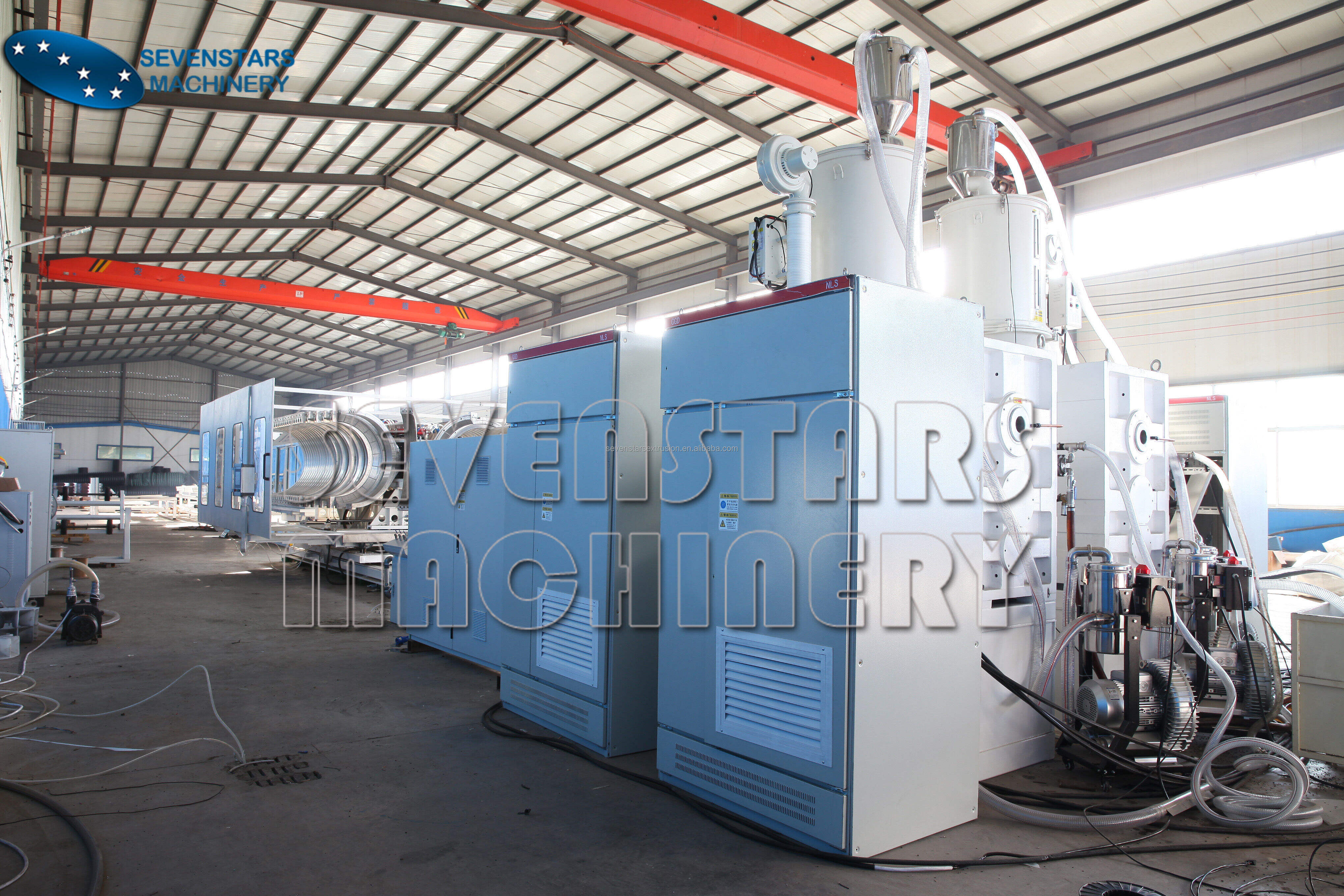

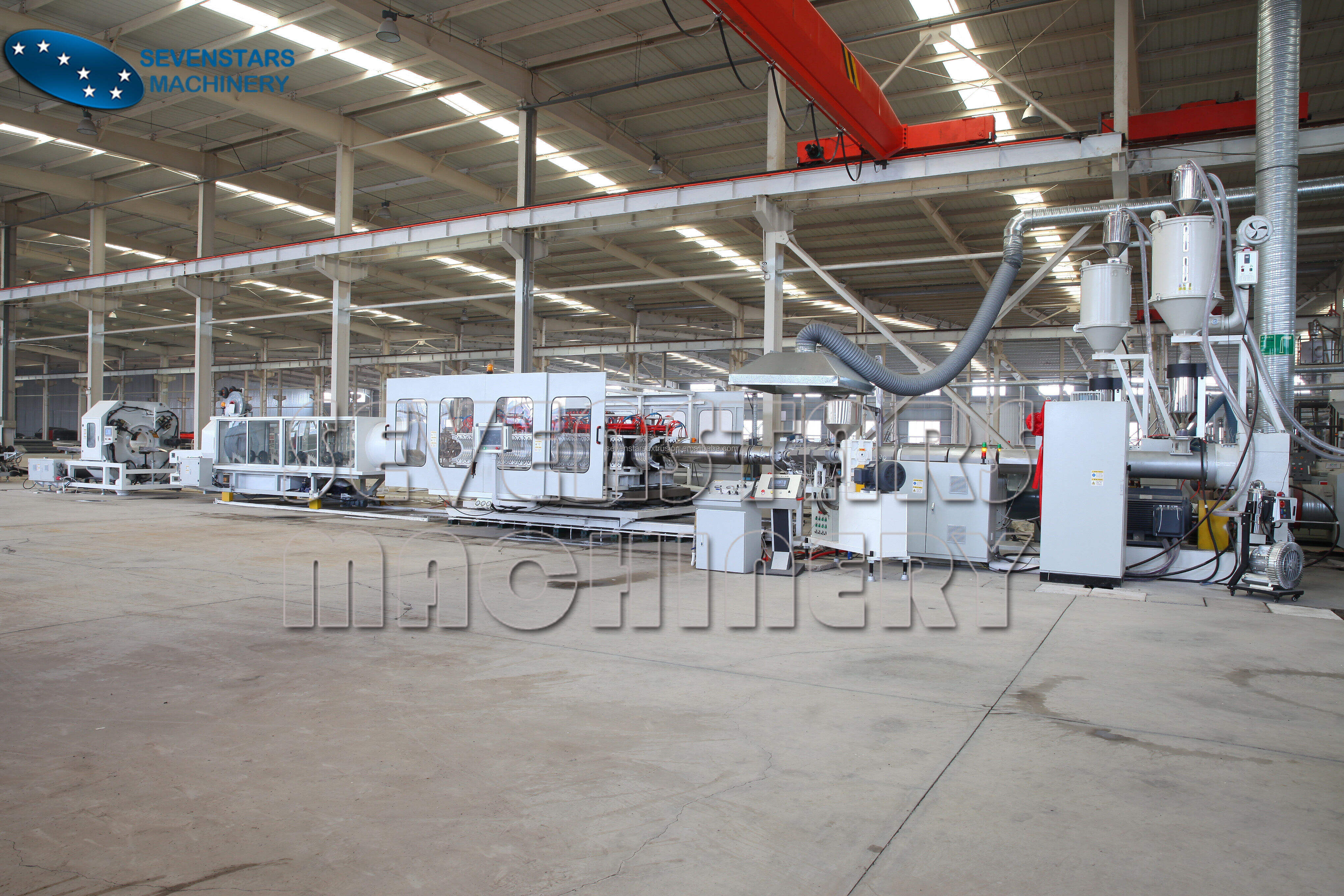

Equipment composition:Single screw extruder(inner layer), Single screw extruder(outer layer), High speed water cooling corrugator, Spray cooling tank, mould, Cutting machine, Stacking machine, PLC control system

Main Equipment and Parameter

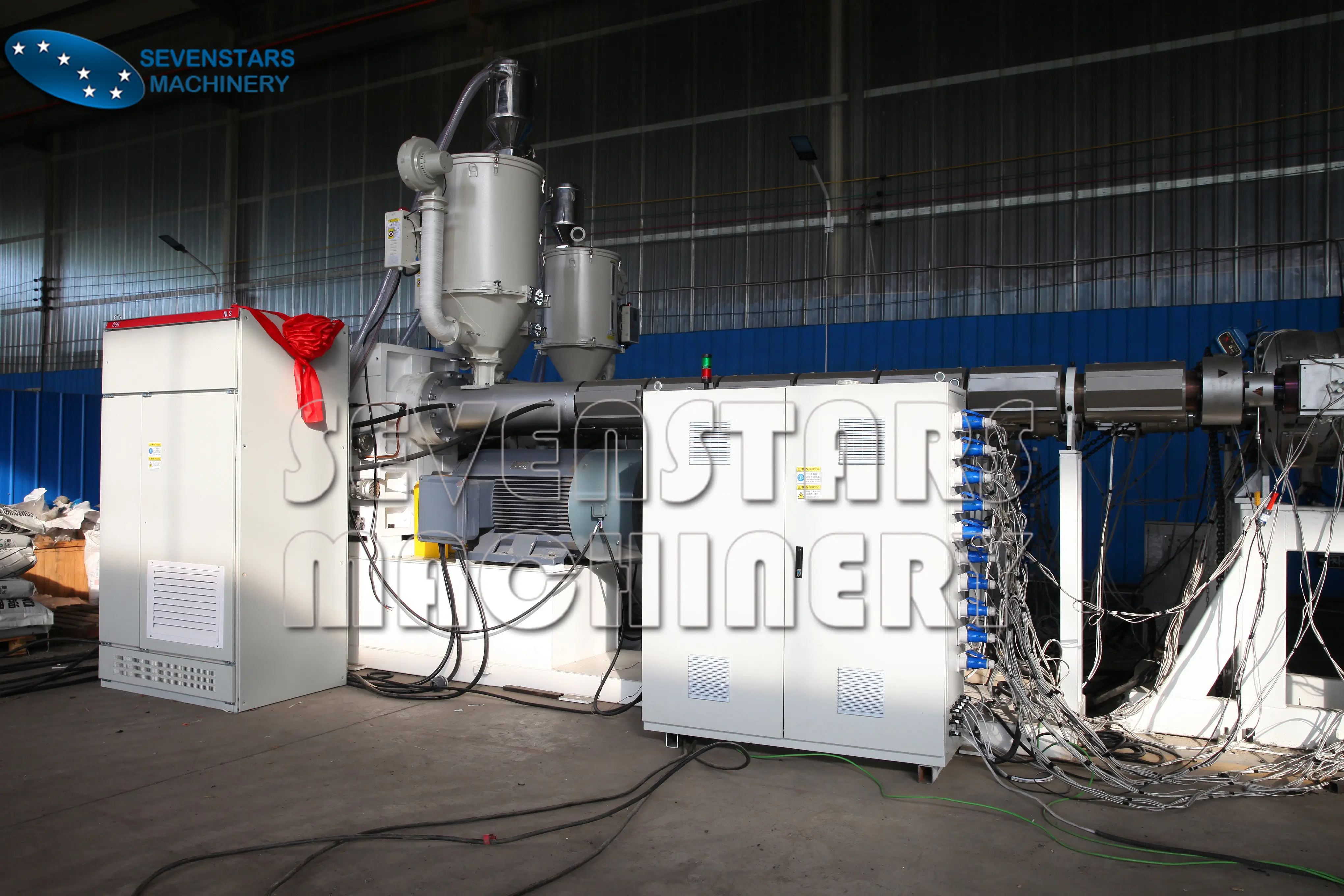

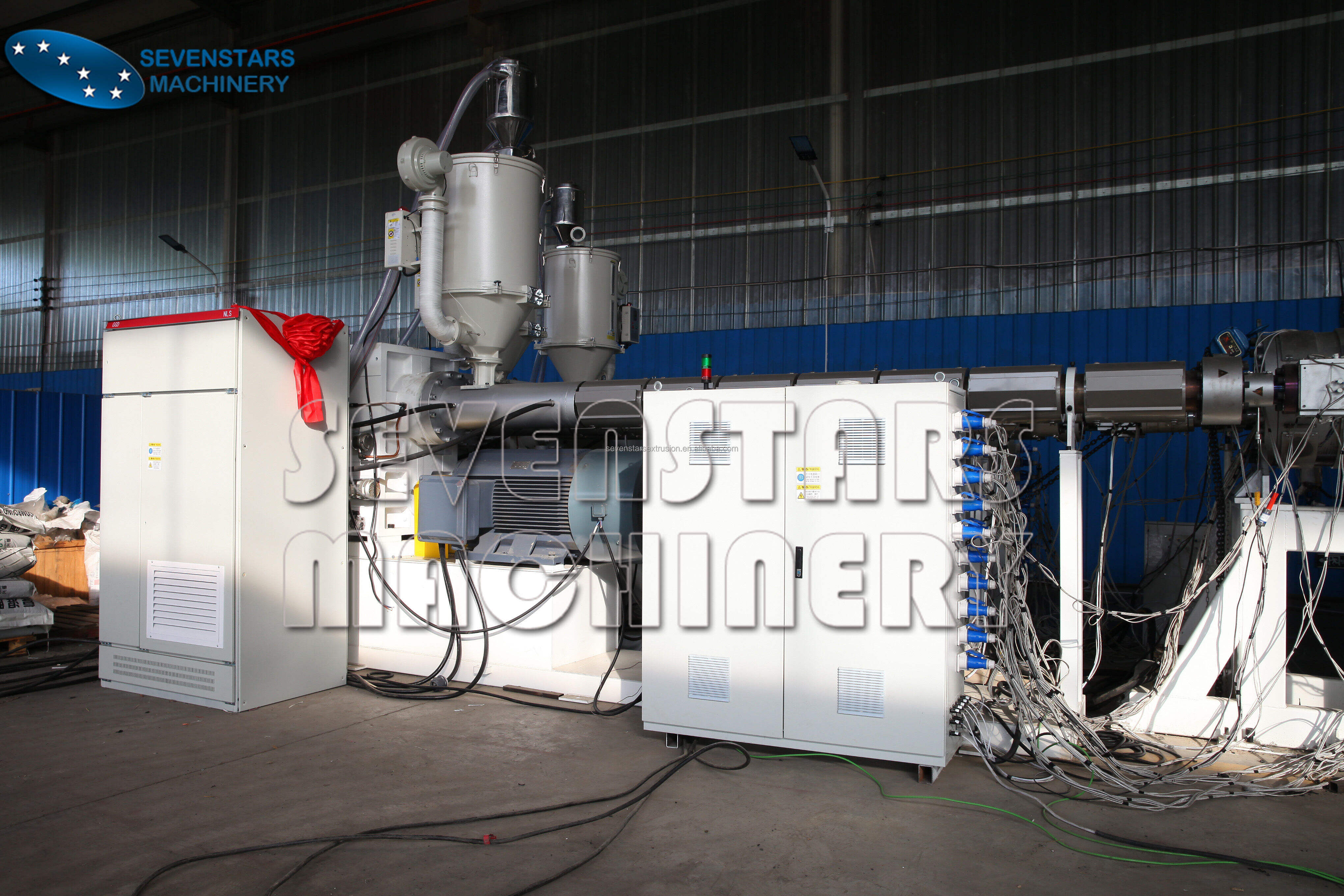

1. Single Screw Extruder Unit - inner&outer layer

Single screw extruder unit	Pairs of modules	Module cooling method	Range of pipe diameters - mm
SJ65/33 & SJ75/33	28/36/48	water-cooling	OD40-OD180
SJ 75/33 & SJ90/33	36	water-cooling	OD110-OD300
SJ90/33 & SJ120/33	36	water-cooling	OD200-ID600
SJ120/33 & SJ150/33	36/39/42	water-cooling	ID400-OD2000

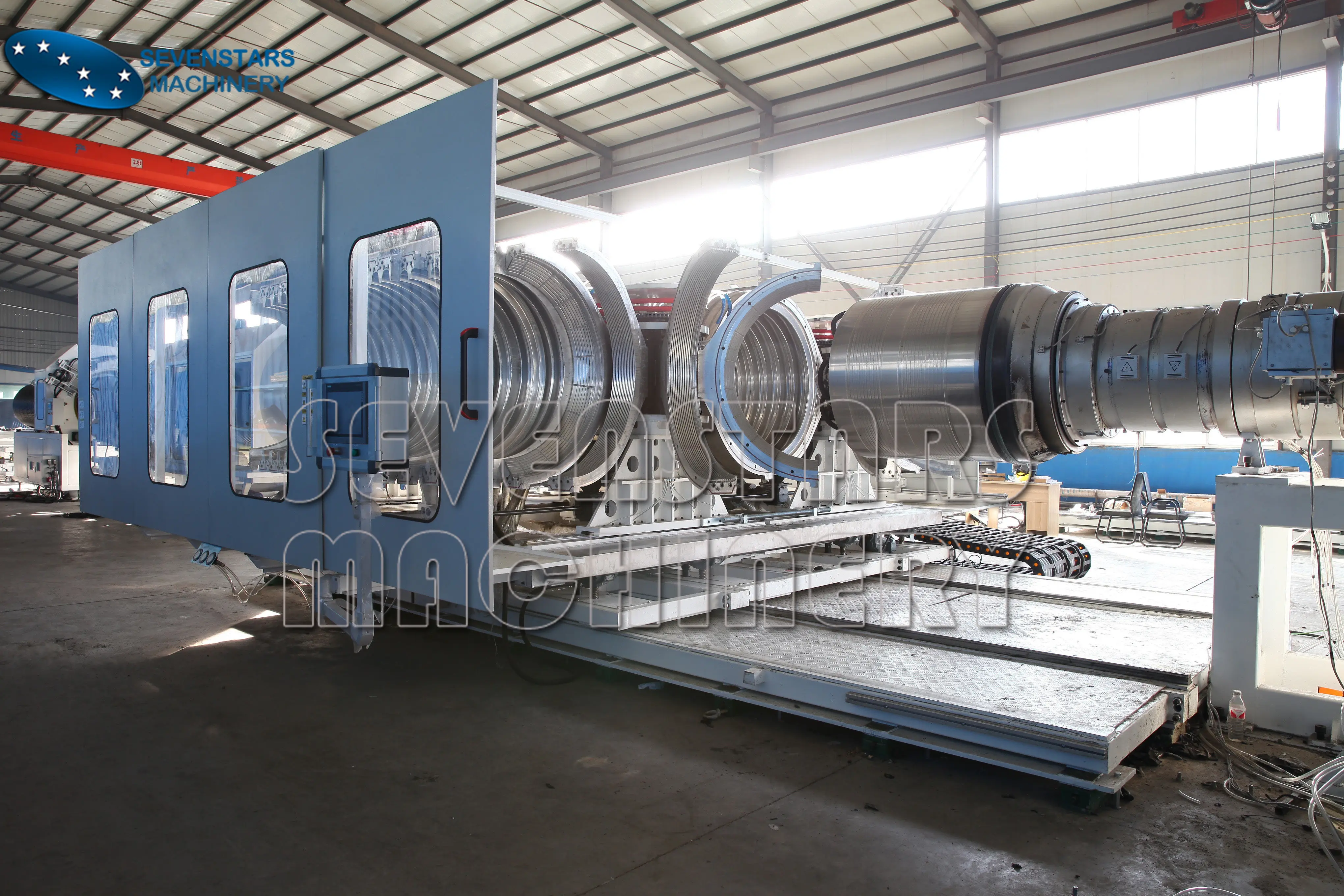

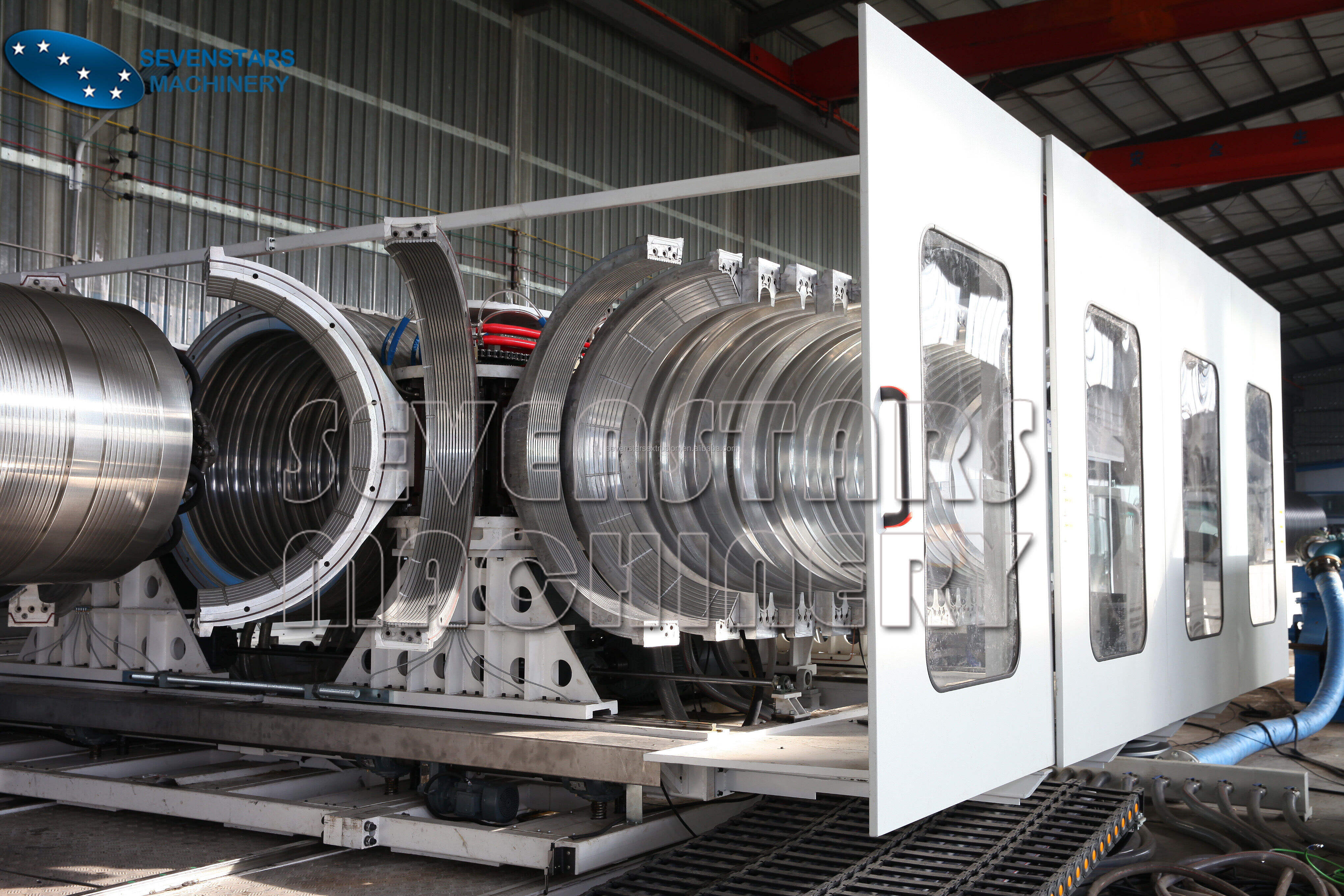

2. High speed water cooling corrufator

·Horizontal structure ensures higher rigidity, lower center of gravity, and smoother operation

·The left and right frames can be opened and closed freely, and the forming module to operate in both directions

·Equipped with automatic lubrication system and the PLC control system has high compatibility, high control accuracy, and high reliability

·Equipped with UPS emergency power supply, which has an emergency exit function

·Equipped with an industrial remote control for remote control of the three-dimensional spatial position adjustment of the molding machine

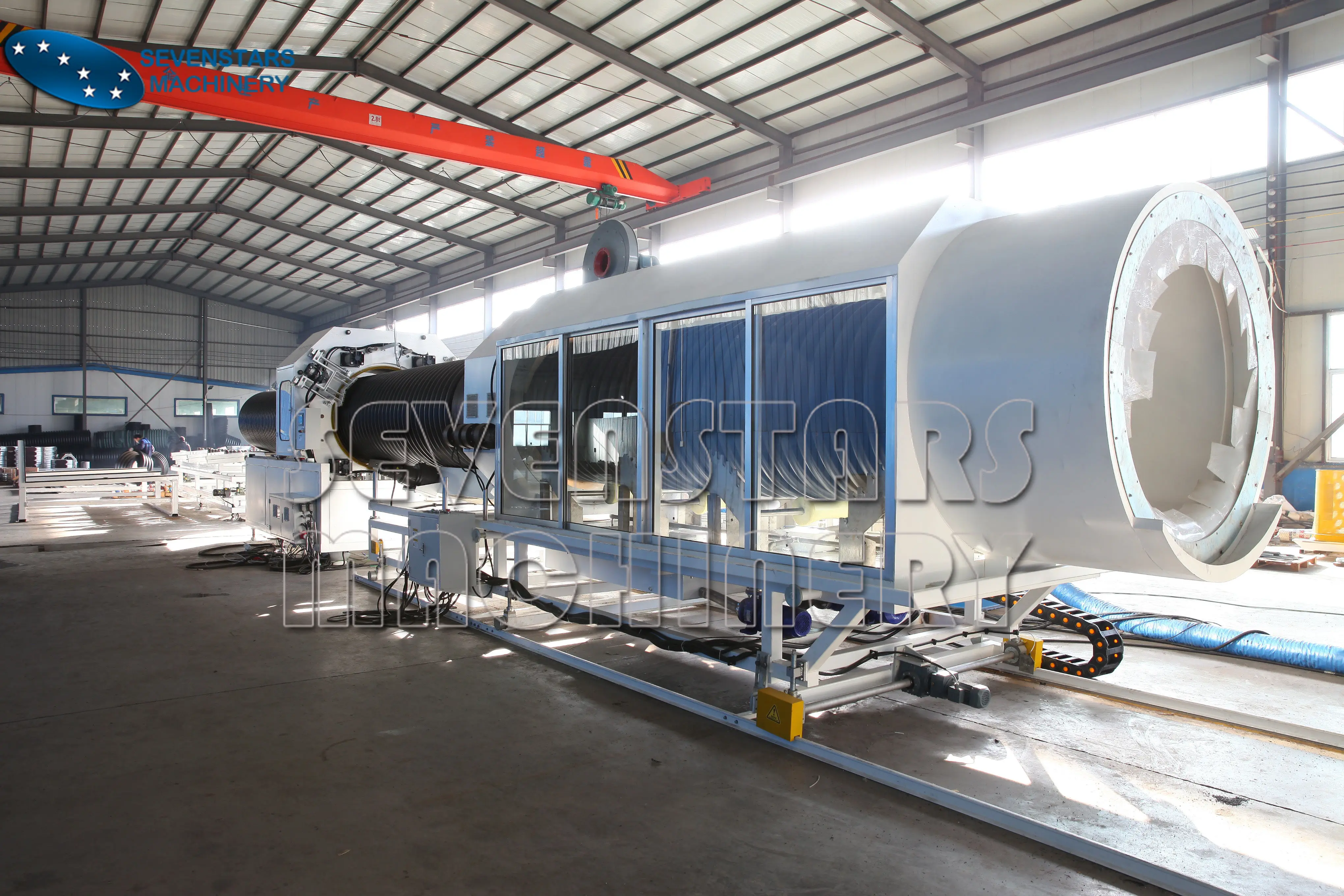

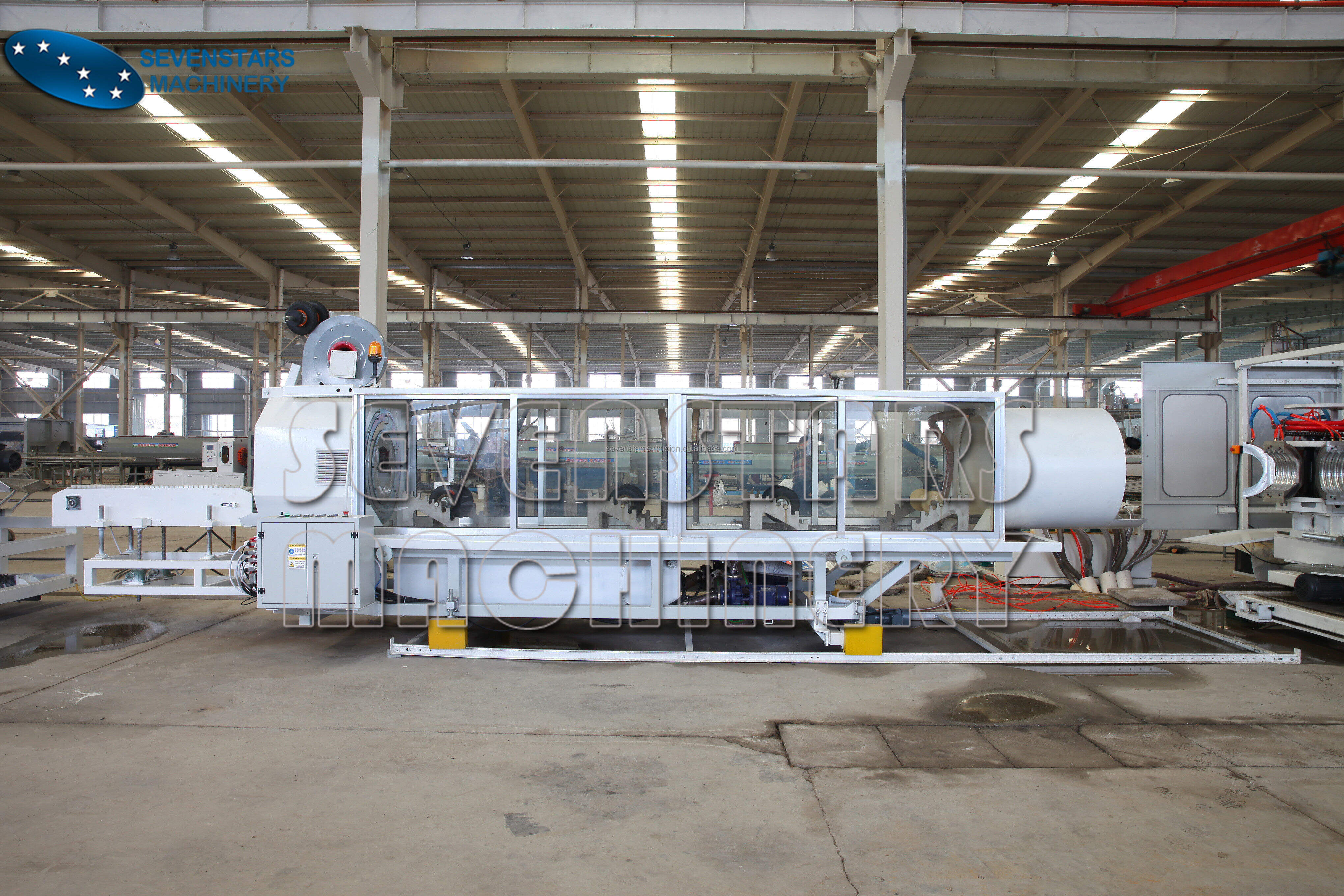

3. Spray cooling tank

·The box is made of stainless steel and designed with a double-sided side open structure, making it easy to operate and maintain; ·The sink is equipped with an active guiding device to effectively reduce the running resistance of the pipes; ·Use a strong blow drying device to completely remove cooling water from the surface of the pipe

4. Cutting machine

Precision

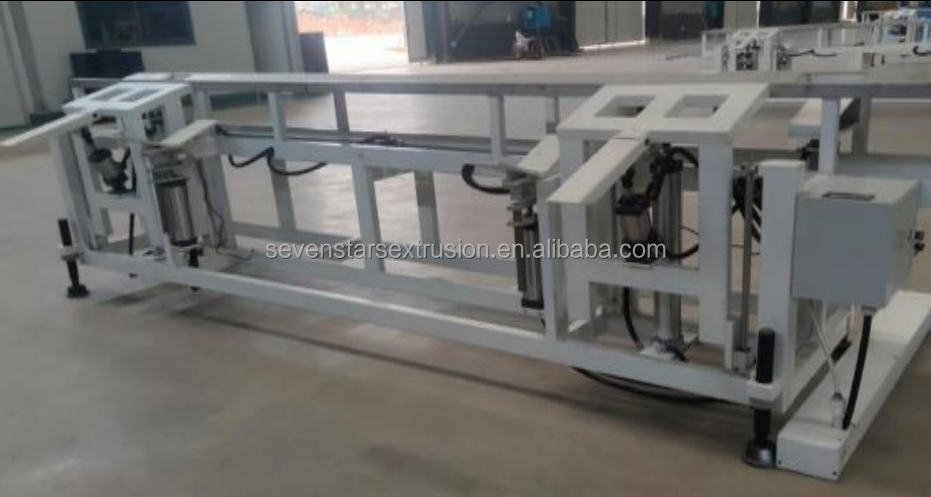

5. Mechanical arm palletizing

Automation

Auxiliary Machine

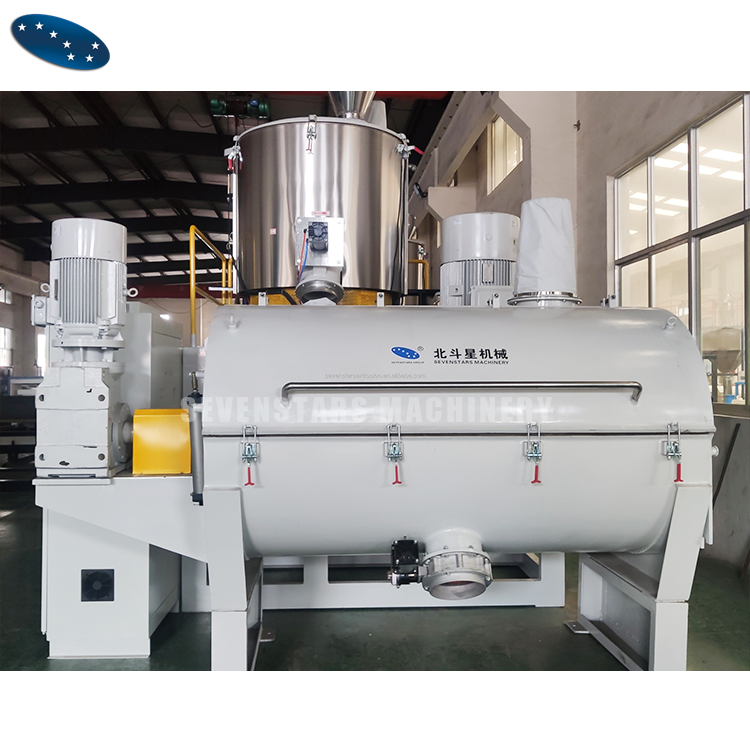

Mixer unit for raw materials

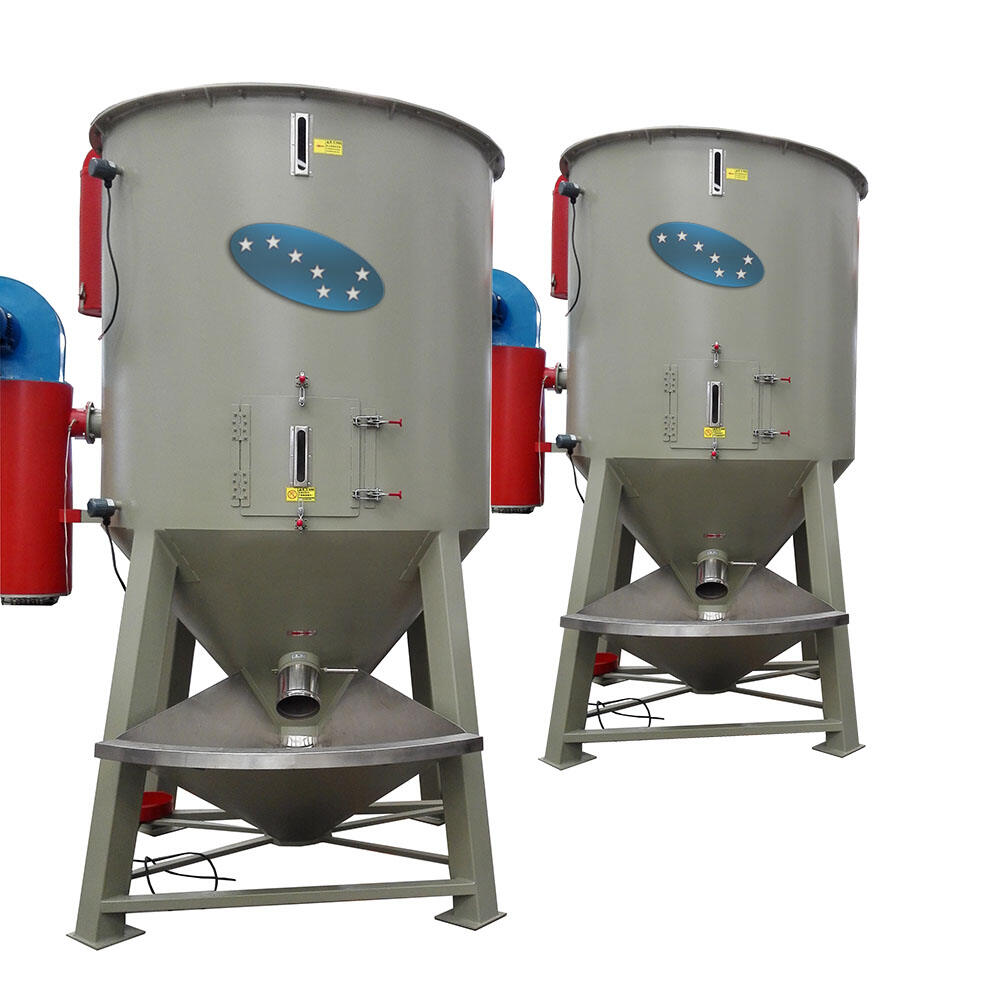

Mixer dryer for raw materials

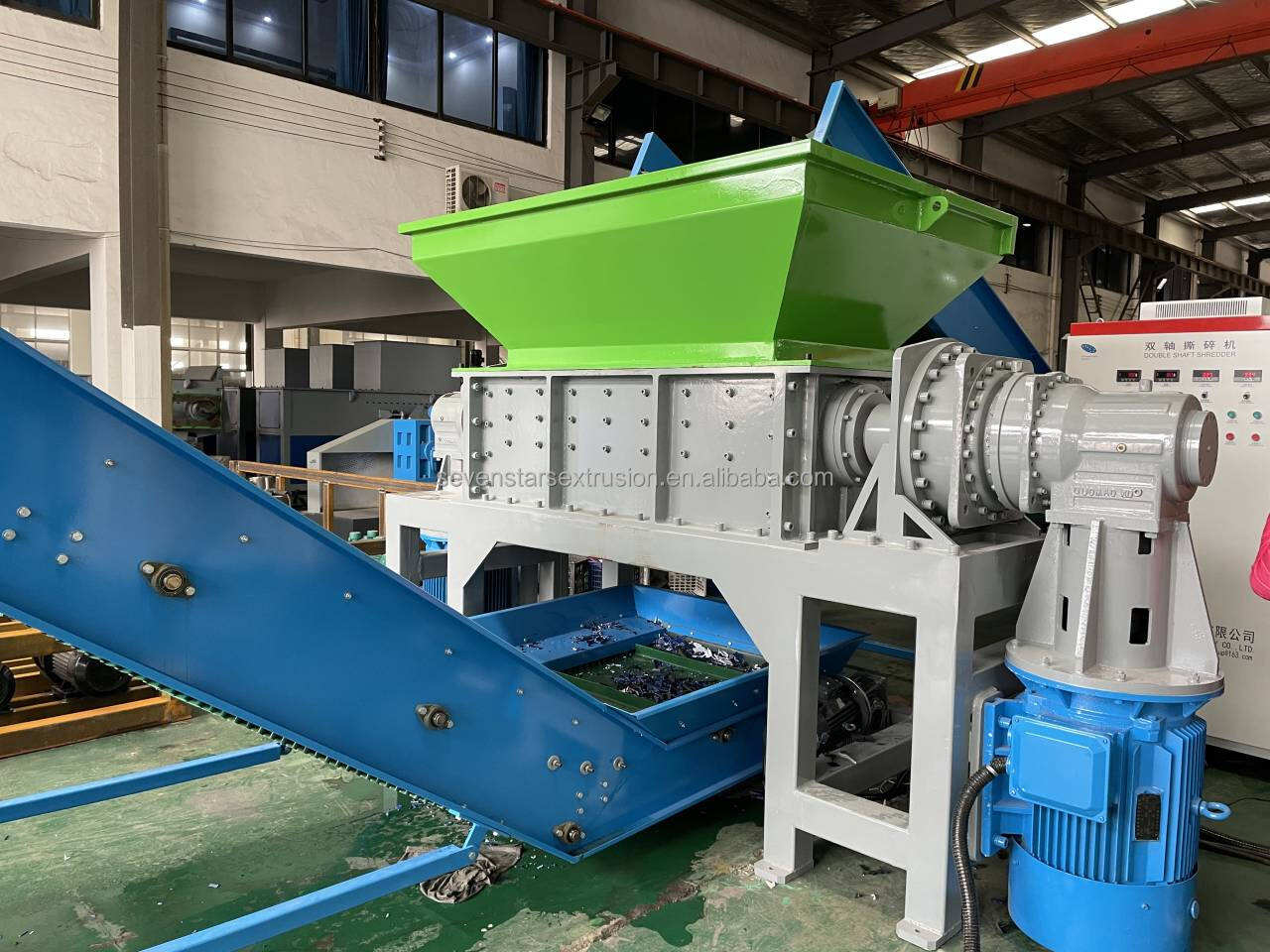

Crusher for recycling

Equipment Features:

1. Horizontal high-speed water-cooled line, low energy consumption of pipes, and low labor costs

2. Two extruders, two-layer extruding simultaneously, more stable extrusion material and better plasticization effect

3. The module material is made of cast aluminum alloy, with high thermal conductivity, hardness, and wear resistance; Adopting an integral pressure casting process, the texture is more dense;

4. The unique spiral structure of the die ensures low-temperature and low-pressure extrusion, and the innovative design of the inner and outer layers of the die ensures convenient and simple adjustment of the inner and outer wall deviation, without the need to disassemble the water jacket

5. PLC control system, digitization and more refined

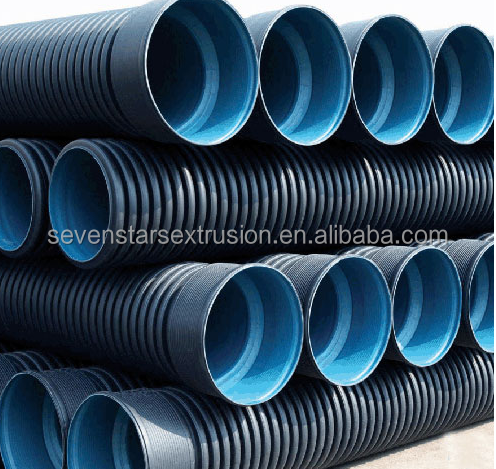

Final product and application

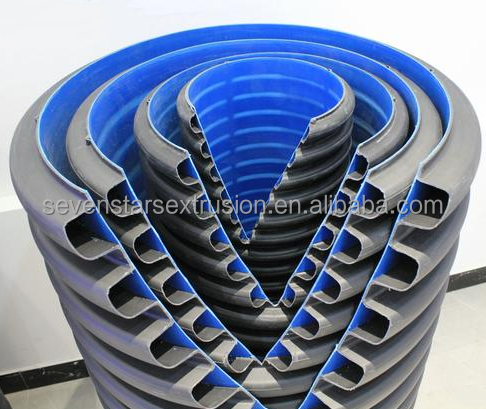

Double-wall corrugated pipe is a new type of pipe with a ring-shaped outer wall and a smooth inner wall. It was first successfully developed in Germany in the early 1980s. After more than ten years of development and improvement, it has evolved from a single variety to a complete product series

The production process and usage technology are already very mature. In China, the promotion and application of HDPE double-wall corrugated pipes are in an upward trend, and all technical indicators have reached the usage standards

Double-wall corrugated pipe has many advantages:

high strength,  lightweight, environmental protection, easy installation, strong adaptability

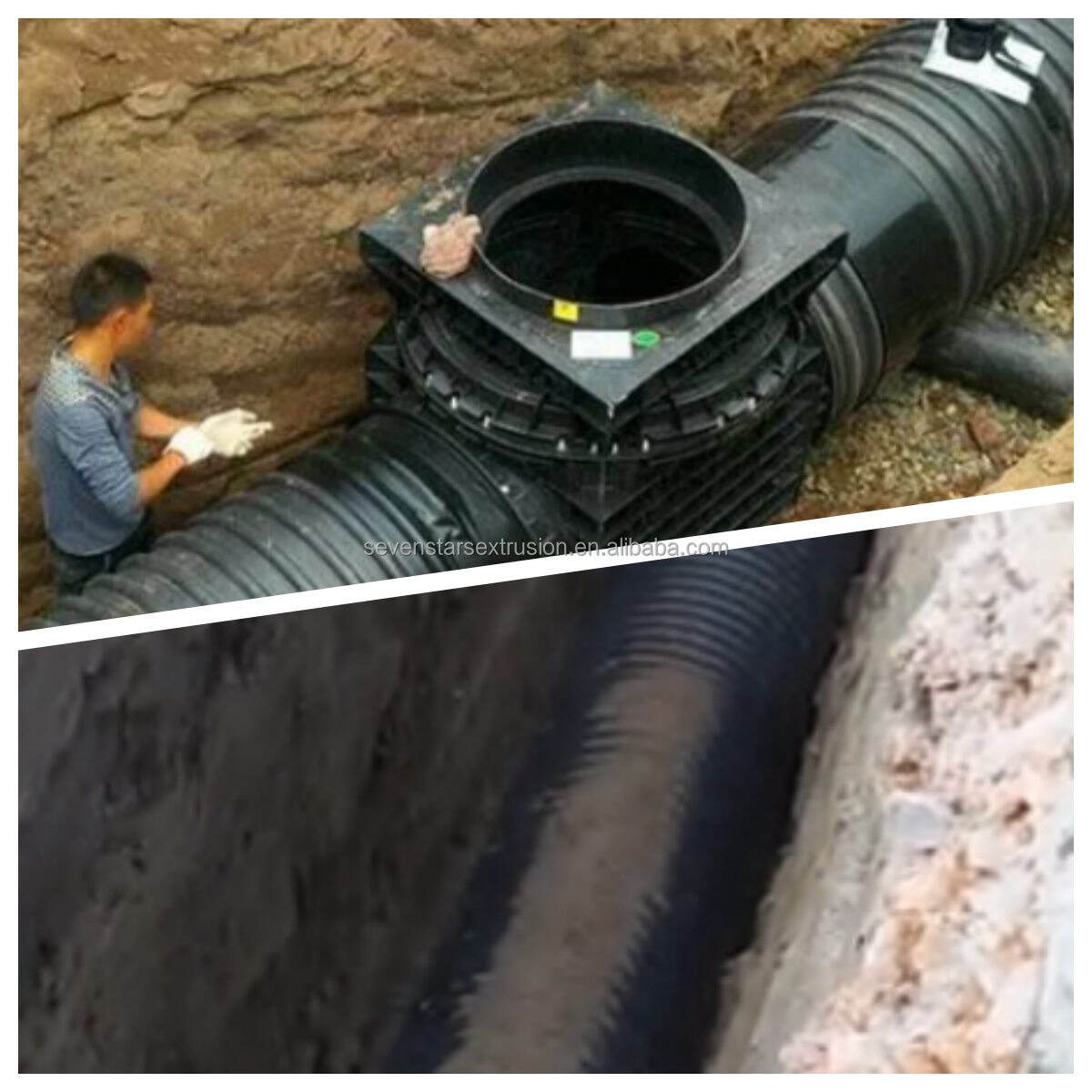

Double-wall corrugated pipe can be used for drainage pipes in municipal engineering, construction engineering, industry, agriculture, mines, etc. It can also be used as a protective sleeve for communication cables and optical cables. The perforated double wall corrugated pipe can be used as a seepage pipe and drainage pipe for saline alkali highways
