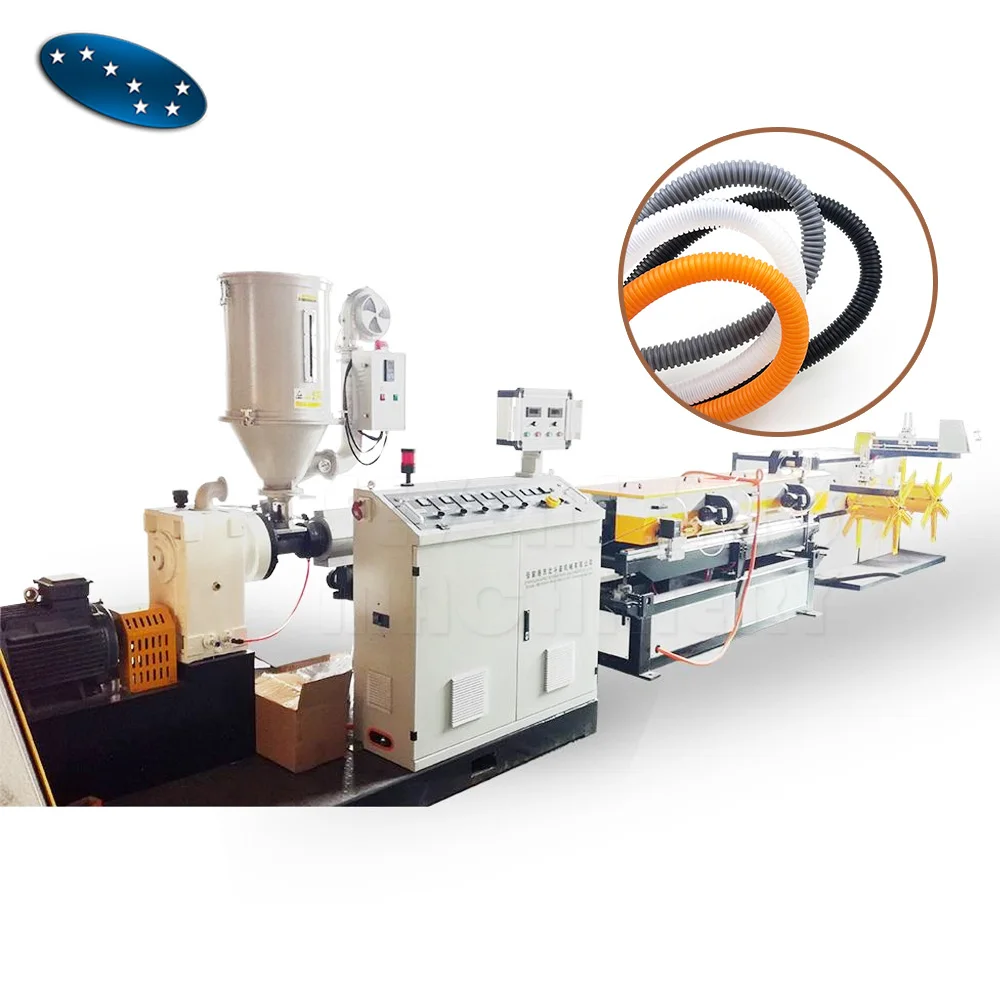

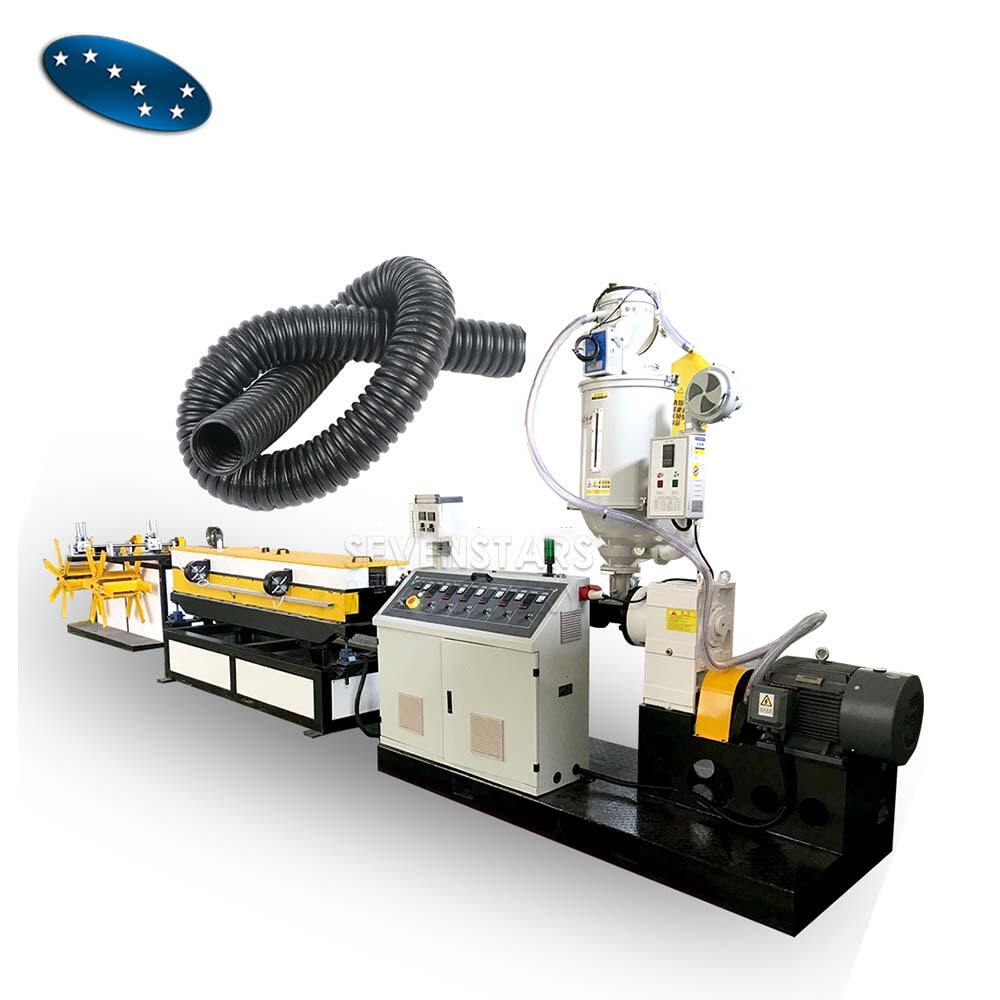

Sevenstars HDPE PE PP PVC Multifunctional Single Wall Corrugated Pipe Extruding Line Machine Single Screw Core Motor Gearbox

The Sevenstars HDPE PE PP PVC Multifunctional Single Wall Corrugated Pipe Extruding Line Machine is a high-quality industrial machine designed to produce single wall corrugated pipes made from various plastics such as HDPE, PE, PP, and PVC. Manufactured by Sevenstars Machinery, a trusted name in pipe making equipment, this machine offers reliable performance, versatility, and ease of use, making it an excellent choice for businesses in the pipe production industry.

This extruding line machine uses a single screw core motor and a gearbox system that work together efficiently to transform raw plastic materials into durable corrugated pipes. The single screw design ensures smooth and consistent melting and extrusion of plastic pellets, while the core motor provides strong and stable power to drive the process continuously. The gearbox aids in adjusting the speed and torque, allowing precise control over the production process, which results in high-quality pipes with uniform wall thickness and excellent durability.

One of the key features of this machine is its multifunctional capability. It can handle different types of plastic materials like HDPE (High-Density Polyethylene), PE (Polyethylene), PP (Polypropylene), and PVC (Polyvinyl Chloride), making it suitable for producing a wide range of pipes used in water supply, drainage systems, electrical conduits, and cable protection. This versatility allows manufacturers to meet various industry requirements without needing separate machines for each material.

The Sevenstars HDPE PE PP PVC Multifunctional Single Wall Corrugated Pipe Extruding Line Machine is designed for easy operation and maintenance. User-friendly controls and a robust structure ensure smooth running and minimal downtime. The machine’s durable build increases its lifespan and reduces repair costs, helping businesses maintain efficient production schedules.

This extruding line machine from Sevenstars Machinery is a dependable and multifunctional solution for producing high-quality single wall corrugated pipes. Its ability to process multiple plastic materials combined with a powerful single screw core motor and gearbox system makes it a valuable investment for manufacturers looking to expand or improve their pipe production capabilities. Whether you are producing pipes for construction, agriculture, or electrical industries, this machine offers the reliability and flexibility you need

Product Description

12~63mm Single Wall Corrugated Pipe Produciton Line

-This series double wall wire conduit pipe extrusion line can be used to produce corrugated pipes of PVC, PE, PP, EVA

continuously, as well as PA corrugated pipes

-Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc

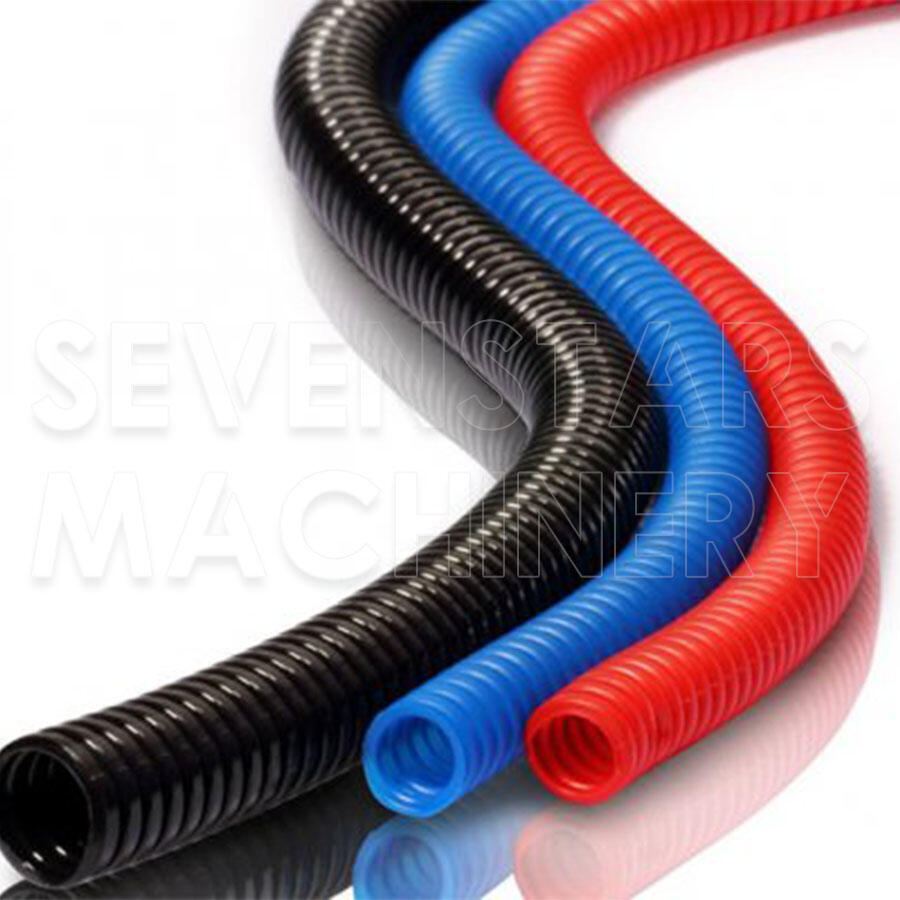

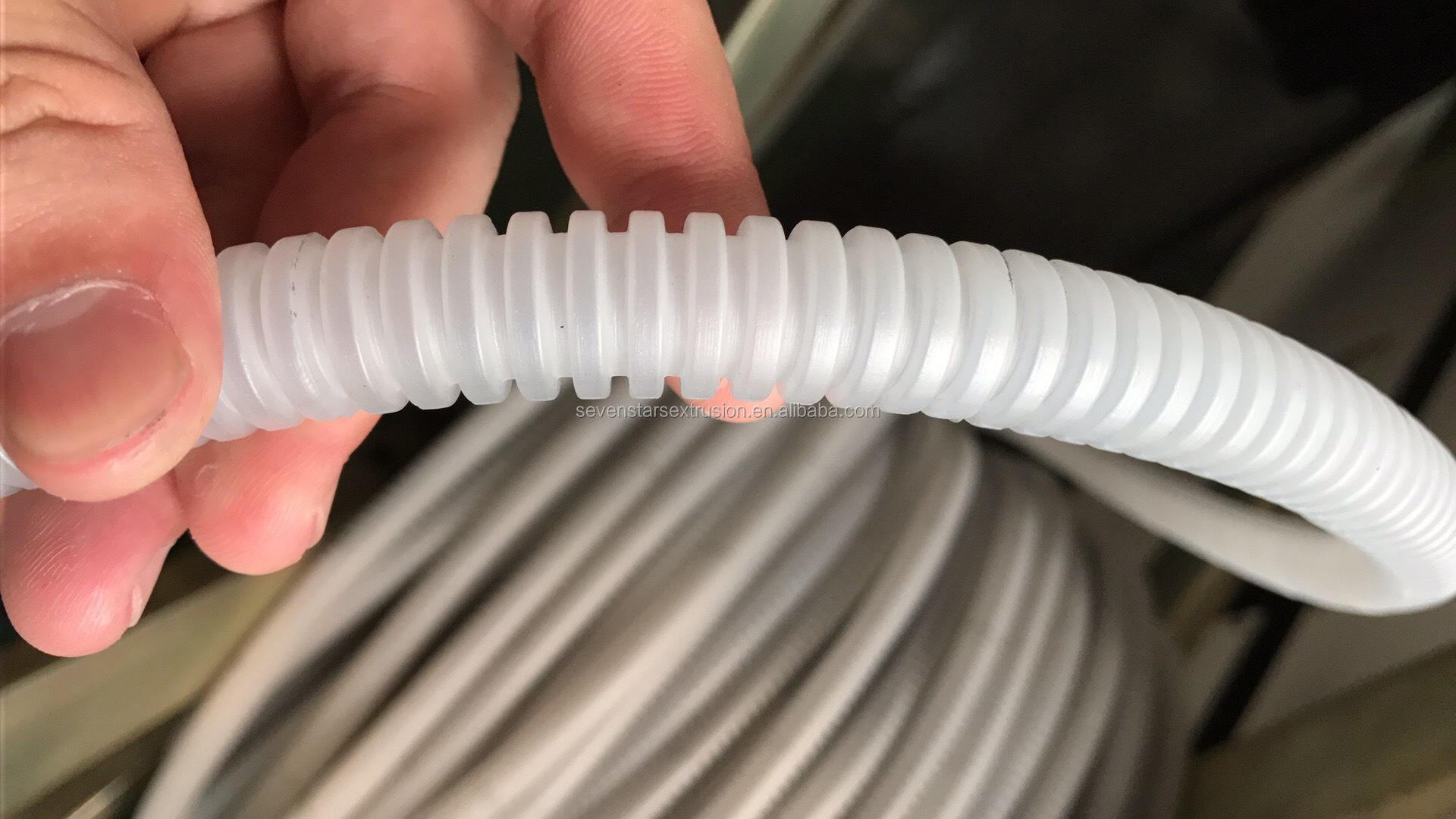

Final product

Process Flow

Raw material+additive → Mixing → granulating → Conveying feeding → Single screw extruder→Extrusion mould → Forming machine → Double disc Winder → Finished product inspecting & packing

Technical Parameters

Pipe diameter	8-32mm	16-75mm
Extruder model	SJ50	SJ65
L/D	25:1/28:1/30:1	25:1/28:1/30:1
Capacity	30-50KG/H	60-80KG/H
Main motor	11kw/15kw	18.5kw/22kw
Cooling type	Air fans cooling and water cooling	Air fans cooling and water cooling
Forming mould quantity	50 pairs	60 pairs
Production speed	8-12m/min	8-15m/min
Forming motor	1.5kw	1.5kw

Details Images

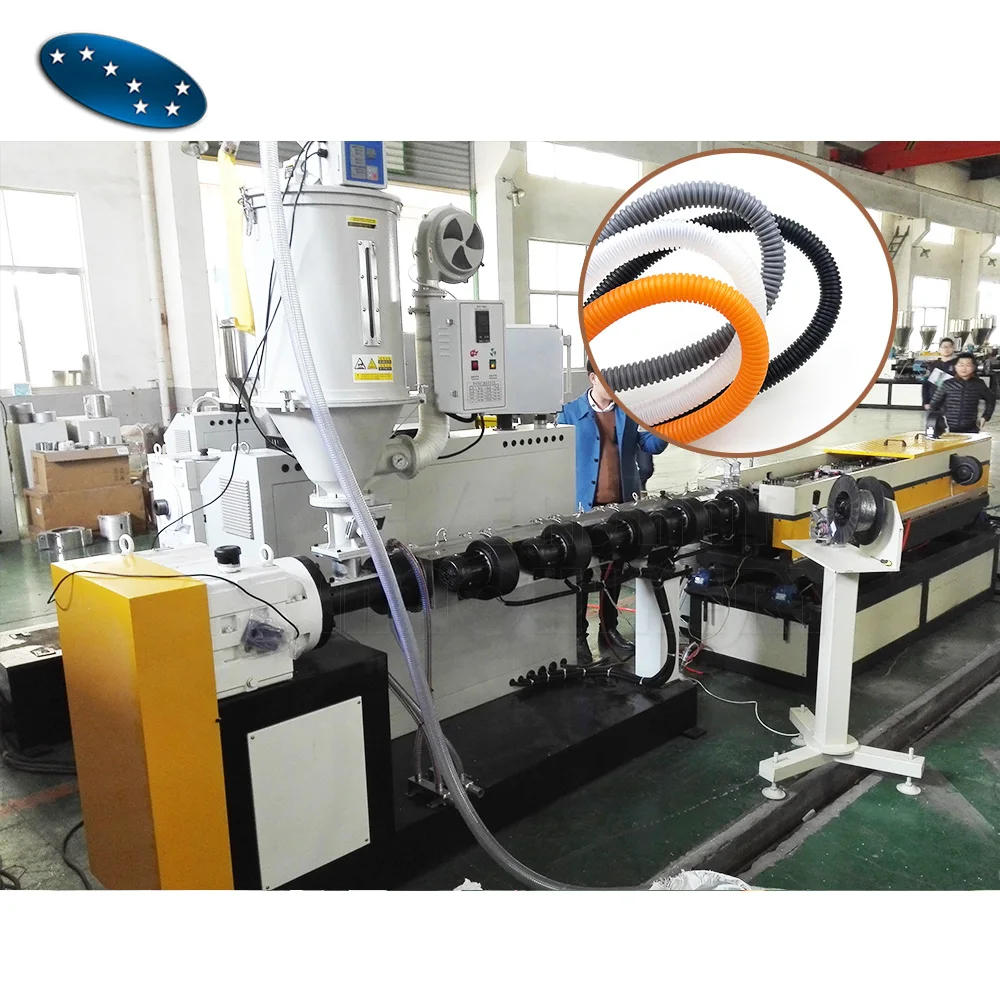

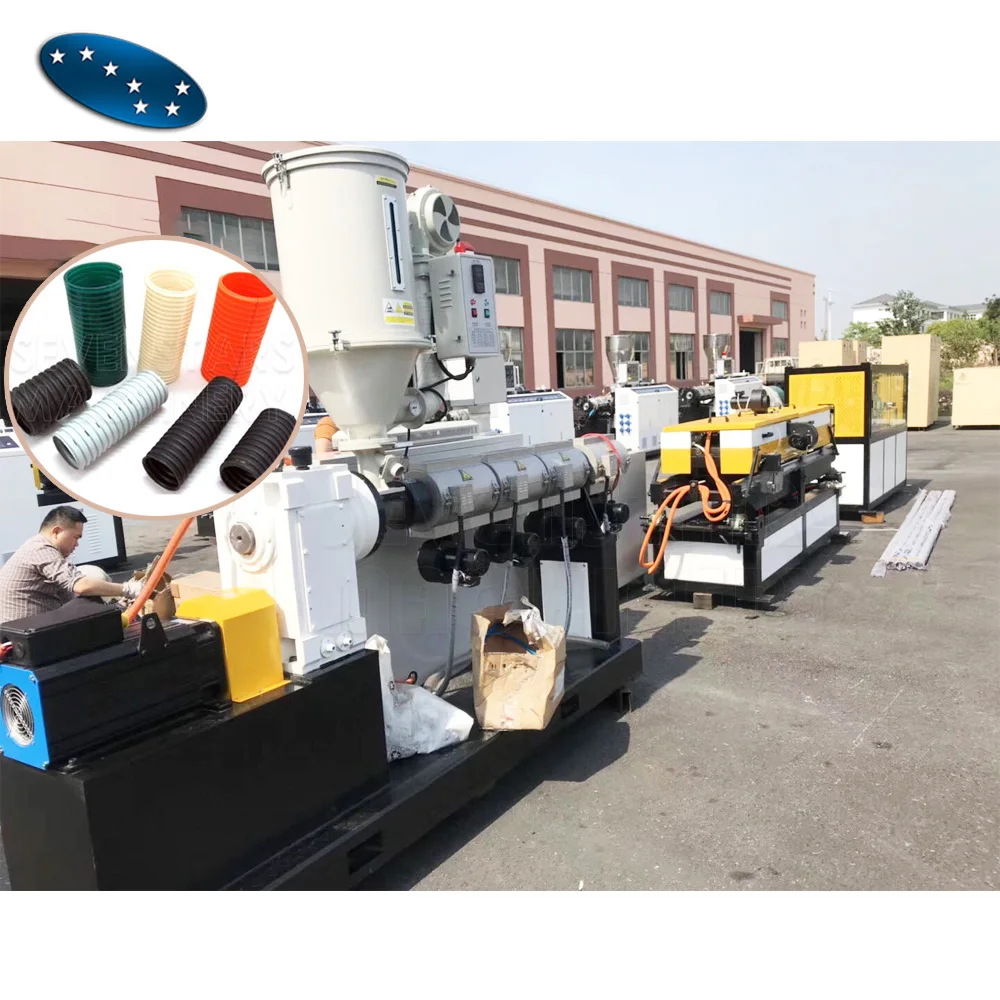

Single-Screw Plastic Extruder

High efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion

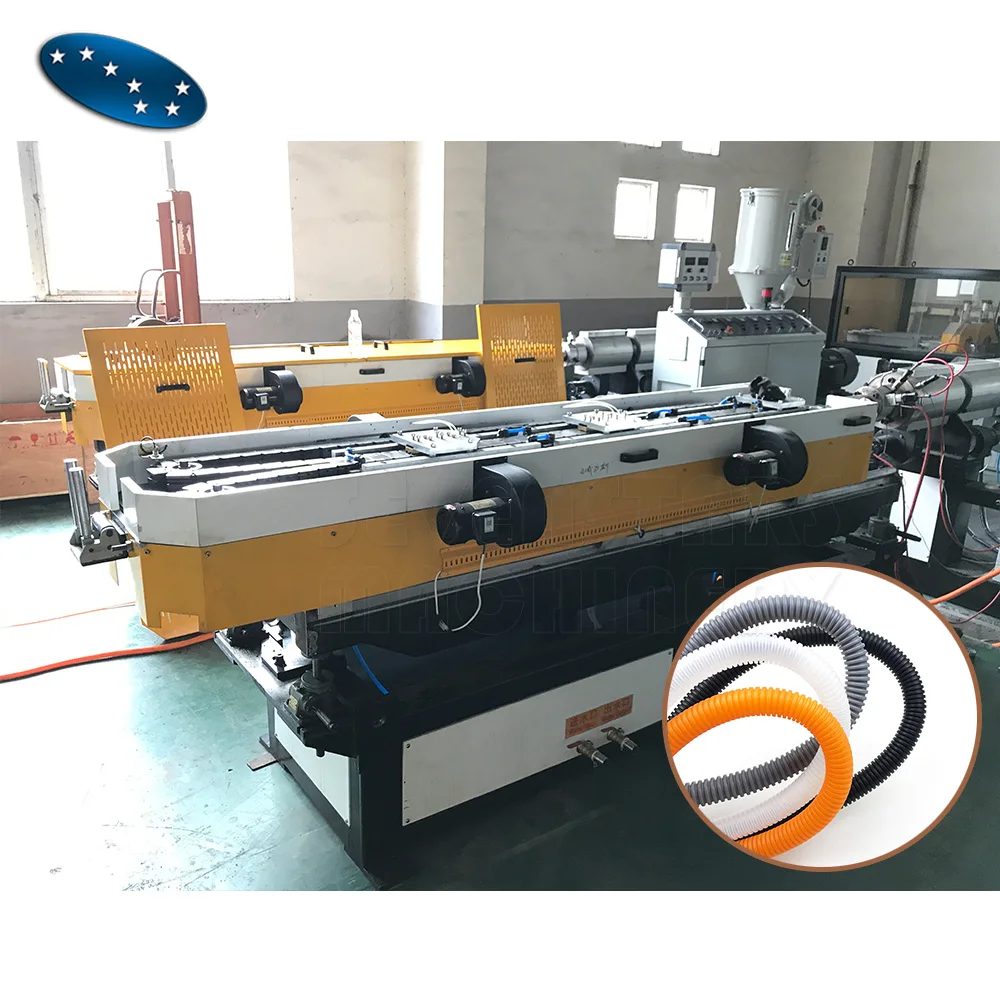

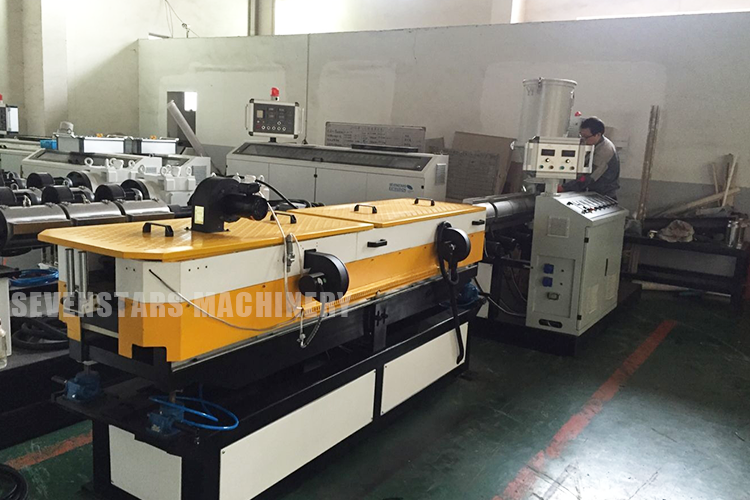

Corrugation forming machine

Closed structure, module link in the overall closure base does round-trip running in the running tunnels

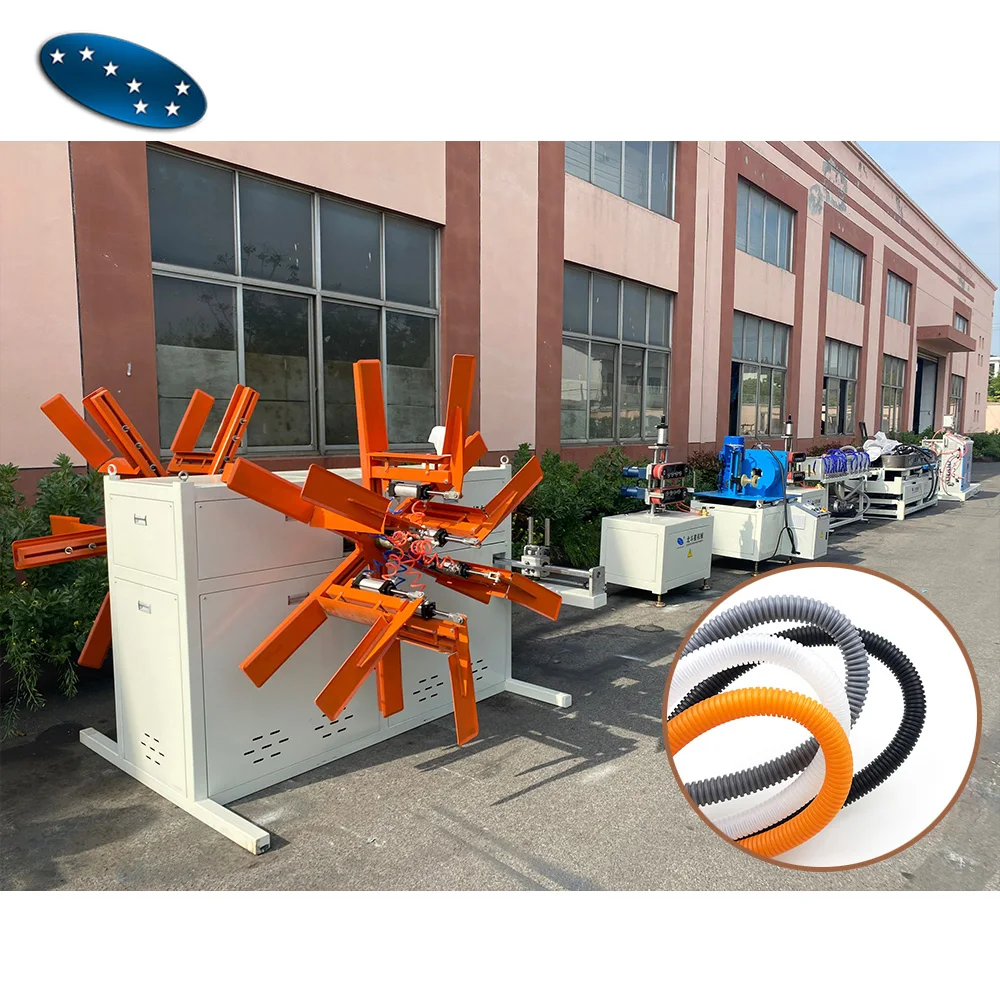

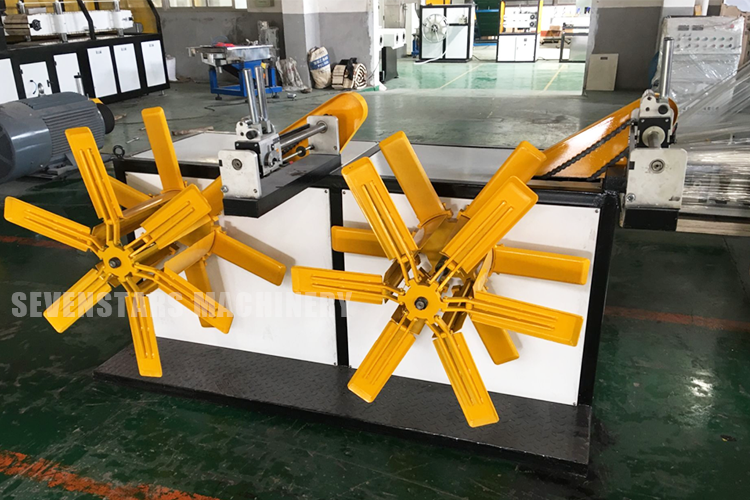

Disk Winder

Single position or double position with torque motor

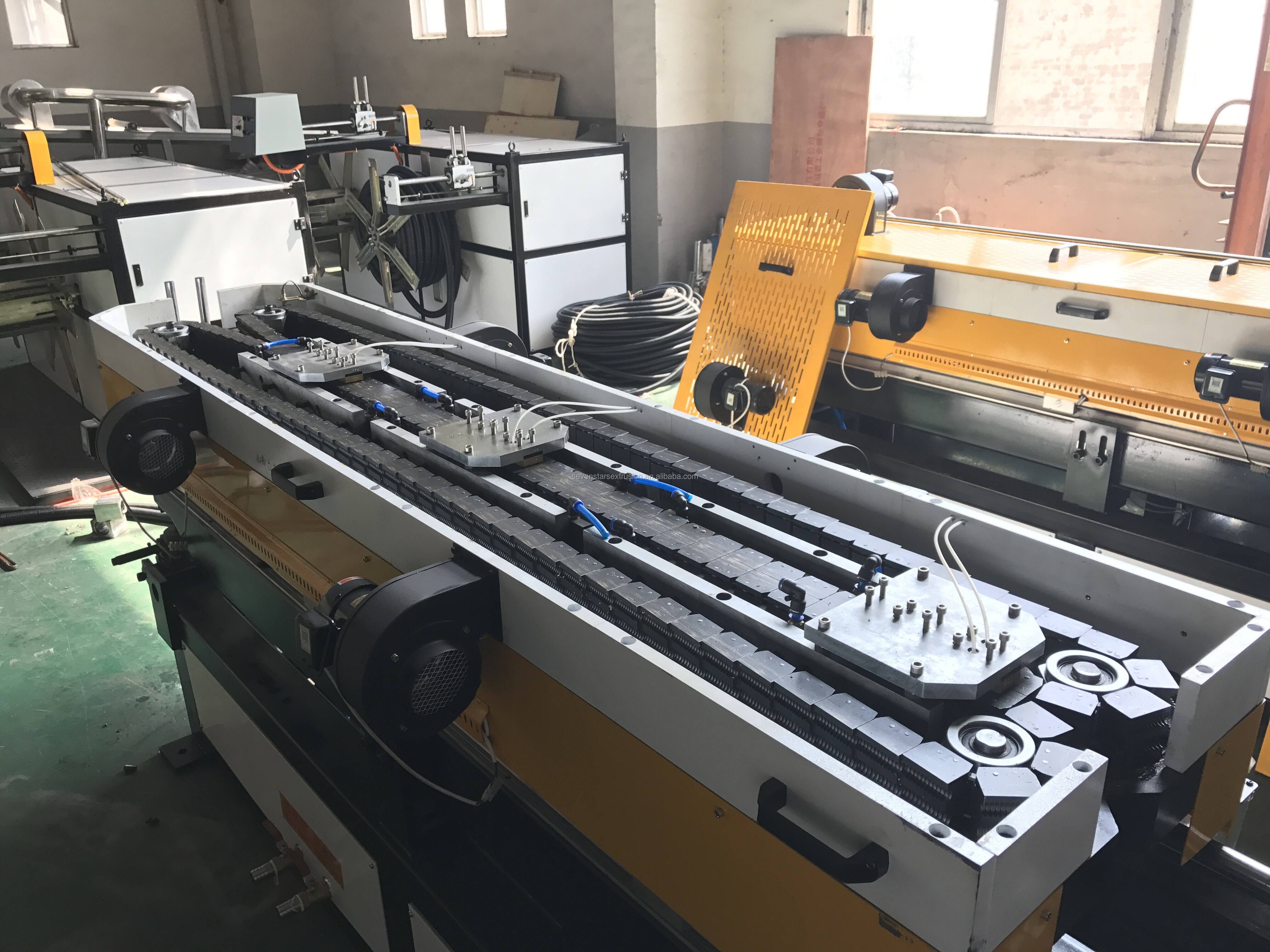

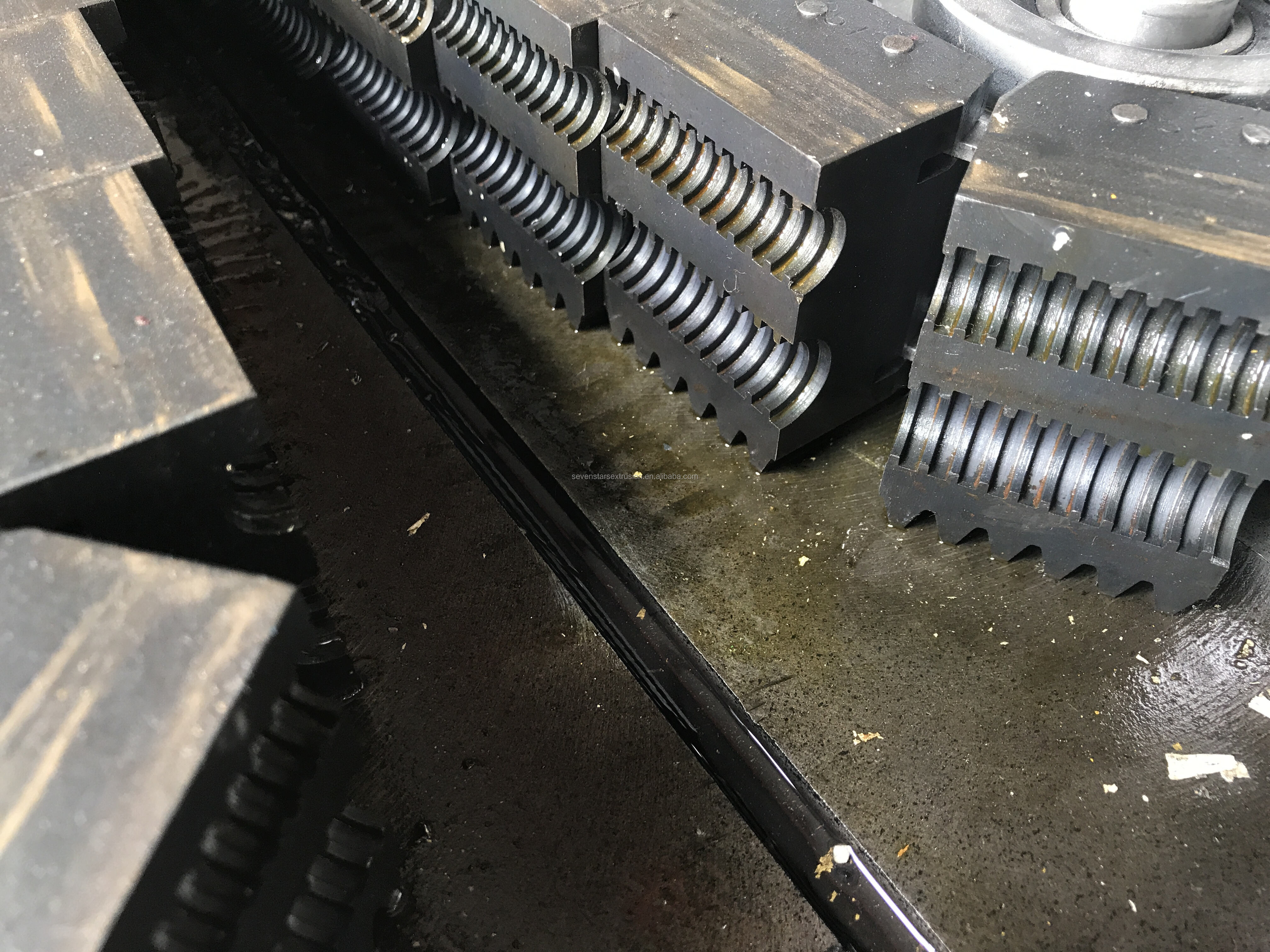

Forming modules:it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change

Related product

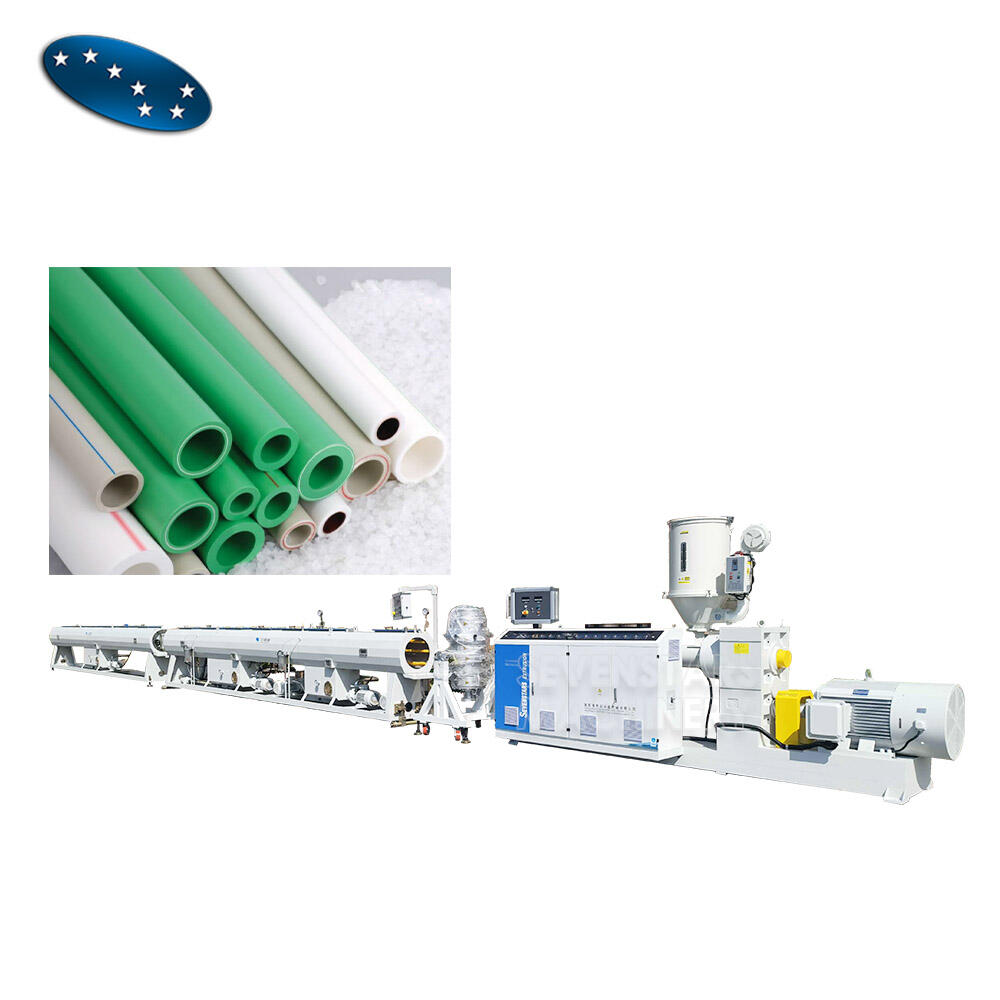

PP-R/PERT  Pipe Production Line
