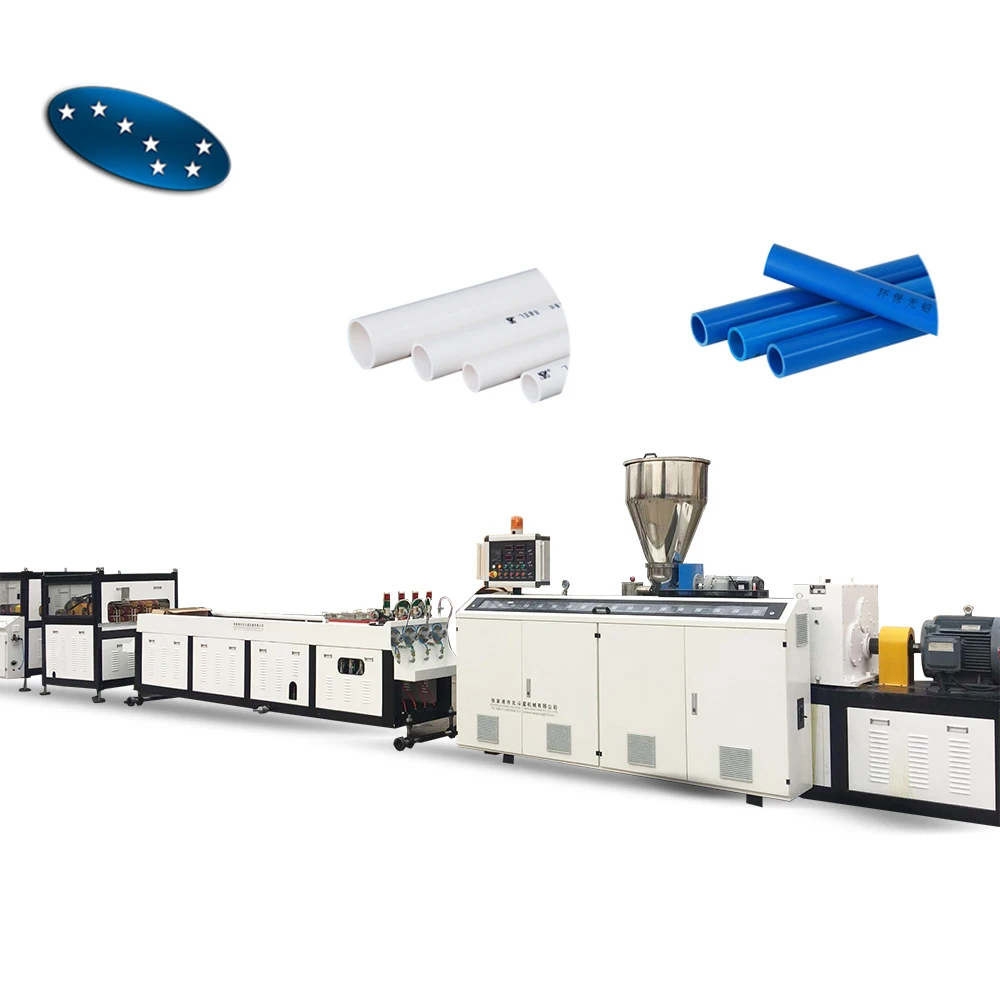

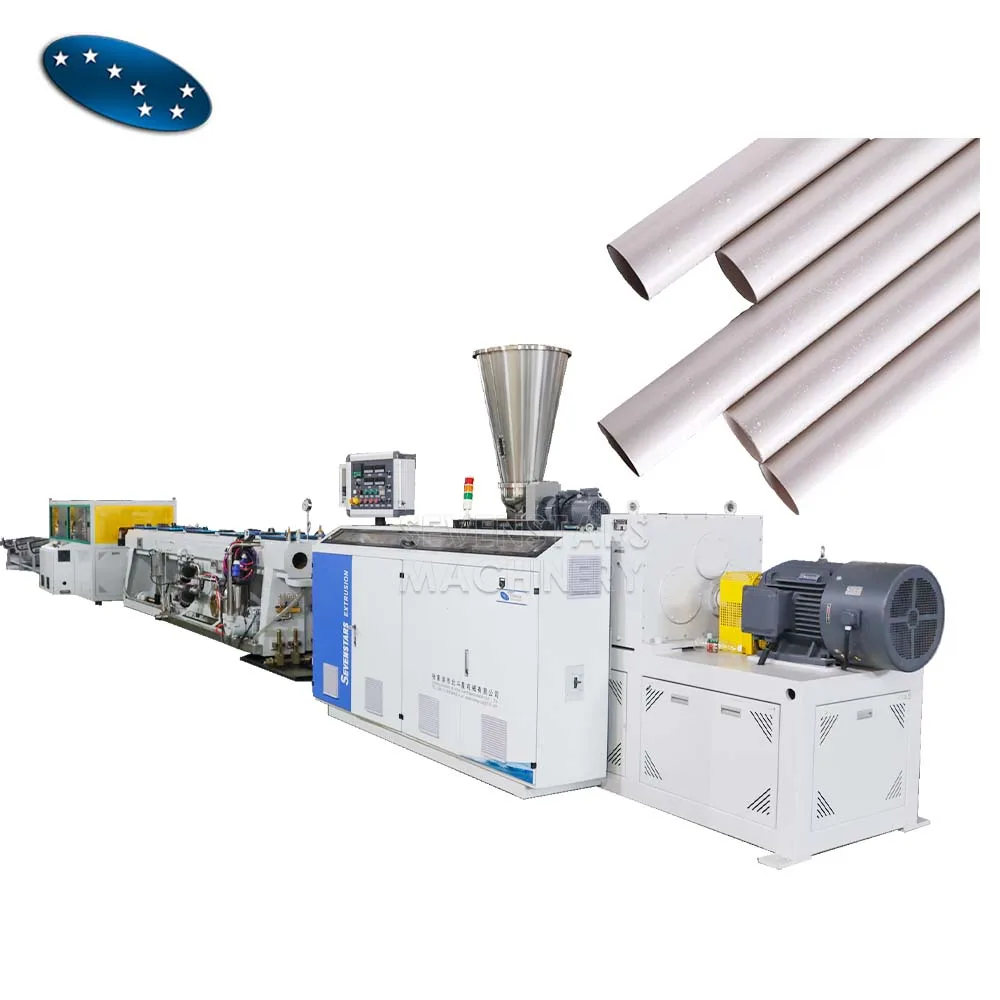

Good Quality Plastic PVC Pipe Extrusion Making Machine Line for Conduit Pipe

The Good Quality Plastic PVC Pipe Extrusion Making Machine Line by Sevenstars Machinery is a reliable and efficient solution designed for producing high-quality conduit pipes. This machine line is specially built to help manufacturers create durable PVC pipes that are widely used in electrical wiring, plumbing, and other construction applications. With its advanced technology and solid build, it offers excellent performance and consistent output.

Sevenstars Machinery has crafted this extrusion line with user-friendly features, making it easy to operate even for those with limited experience. The machine line includes all the necessary components for the extrusion process, such as the extruder, die head, vacuum calibration tank, haul-off system, and cutting unit. Each part works seamlessly together to ensure that the pipes produced have a smooth surface, uniform thickness, and strong structural integrity.

One of the key benefits of this PVC pipe extrusion line is its flexibility. It can produce conduits of various sizes, meeting different industry standards and customer needs. This adaptability allows manufacturers to expand their product range without needing to invest in multiple machines. Additionally, the machine line can handle a range of PVC materials, ensuring versatility in production.

Durability and energy efficiency are also important features of the Sevenstars Machinery extrusion line. The machine is built with high-quality materials and components that reduce wear and tear, minimizing maintenance and downtime. Its energy-saving design lowers power consumption, helping businesses reduce operational costs and environmental impact.

Safety is another priority in this machine line. Sevenstars Machinery has incorporated protective features and easy-to-access controls to keep operators safe during the extrusion process. The machine’s stable operation reduces the risk of accidents and ensures consistent quality.

The Good Quality Plastic PVC Pipe Extrusion Making Machine Line from Sevenstars Machinery is a smart choice for manufacturers looking to produce conduit pipes with excellent quality and efficiency. It combines advanced technology, flexibility, durability, and safety in one complete system. Whether you are starting a new production line or upgrading your existing equipment, this extrusion machine line offers great value and performance to meet your manufacturing needs

General description

PVC single cavity production line :

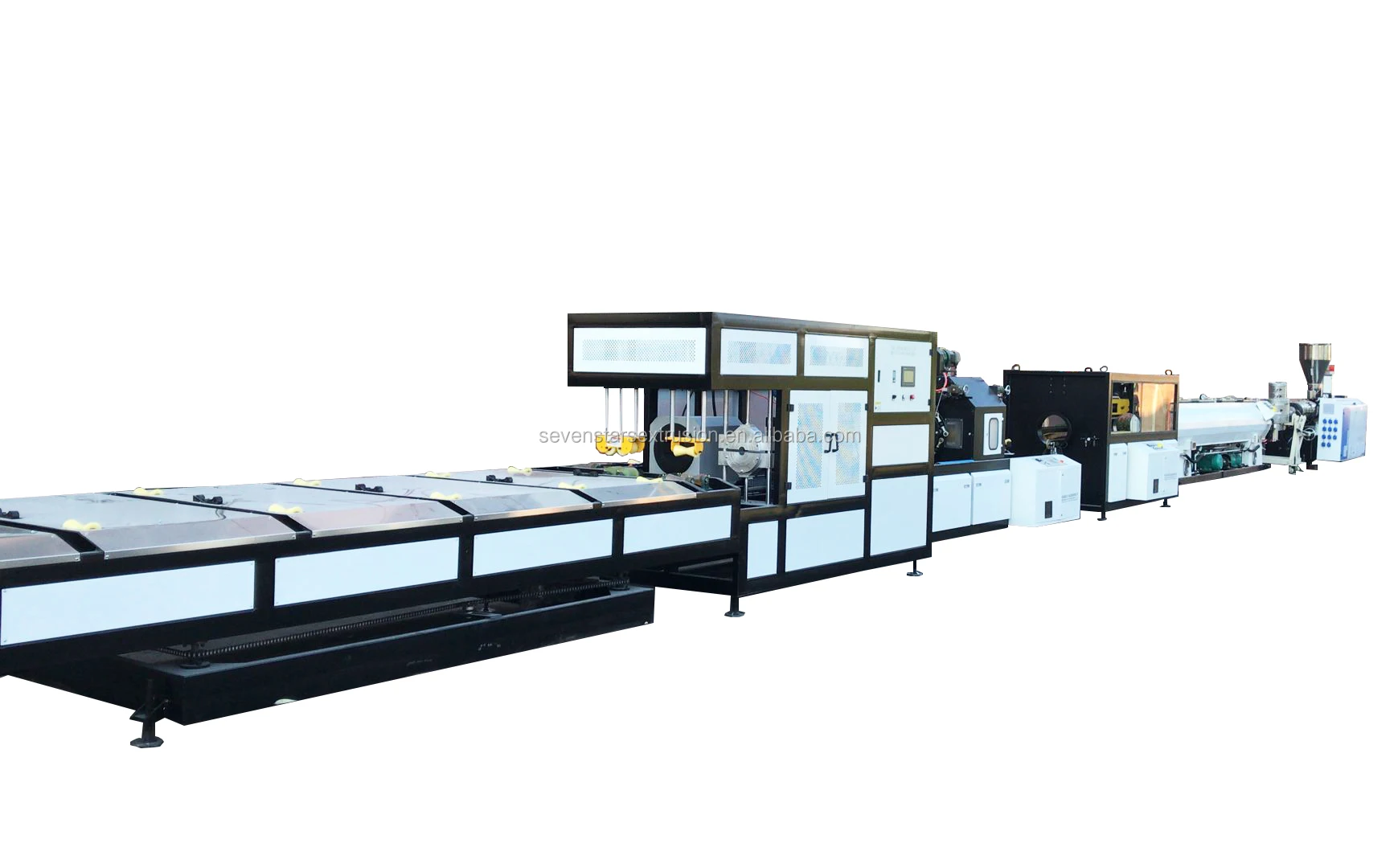

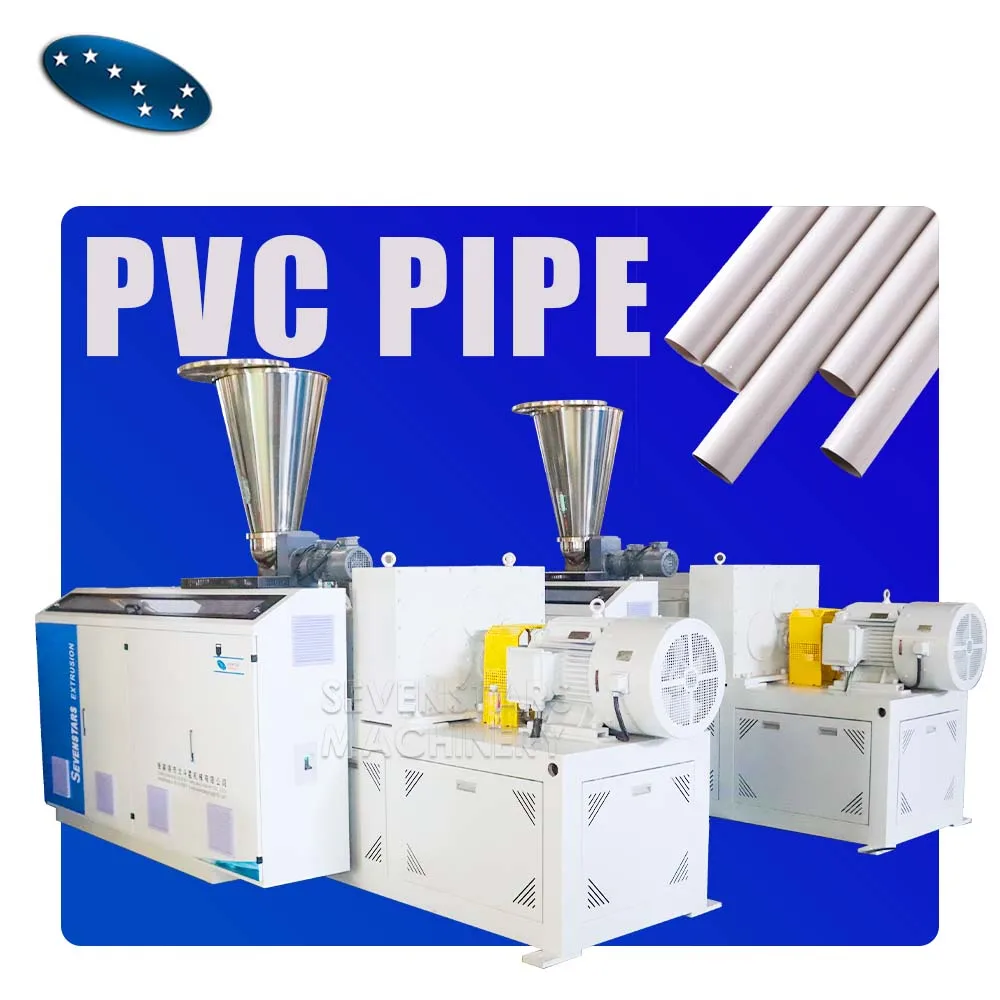

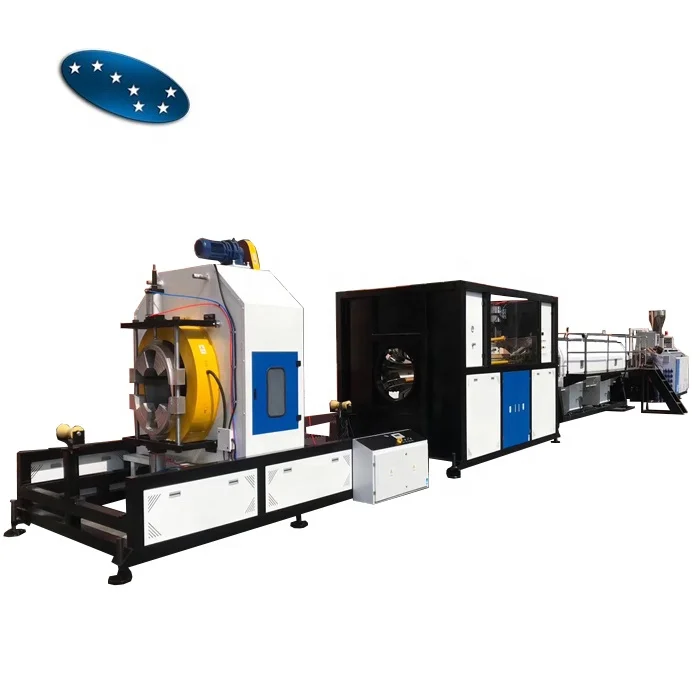

Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing, cable laying etc. This line is composed of conical twin screw extruder, Vacuum calibration tank, haul off, motors, cutter and stacker etc. The extruder and haul off methods are two-claw, three-claw four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device. This line with reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, like spiral silencing pipe and core foaming pipe according to your requirements

PVC double-pipe production line:

The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration, it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding

PVC four cavities production line:

Four cavities PVC electrical tube, water supply pipe extrusion line can extruder four pipes at same time onone machine. This line can save investment cost in factory building and production, which increase the capacity a lot and reduce production time. SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day, the production speed take 16mm as example can get more than 8-10m/min. The whole line is composed of conical twin-screw extruder 65mm, 4 cavity mould, 4 cavity coiling calibration tank, 4 station haul off, 4 station cutter and 4 station tipping table

Product Description

Specification

Model/Item	Pipe range	Extruder	Max output	Max speed	Total power
PVC-50*2	16-50mm	SJSZ65/132	250kg/h	10 m/min	85 kw
PVC-63	16-63mm	SJSZ51/105	150 kg/h	10 m/min	60 kw
PVC-110	50-110mm	SJSZ55/110	180 kg/h	10 m/min	70 kw
PVC-160	63-160mm	SJSZ65/132	300 kg/h	5 m/min	90 kw
PVC-250	110-250mm	SJSZ80/156	400 kg/h	3.5 m/min	120 kw
PVC-315	160-315mm	SJSZ80/156	400 kg/h	3 m/min	160 kw
PVC-450	250-450mm	SJSZ92/188	700 kg/h	1.5 m/min	200 kw
PVC-630	315-630mm	SJSZ92/188	700 kg/h	0.9 m/min	230 kw

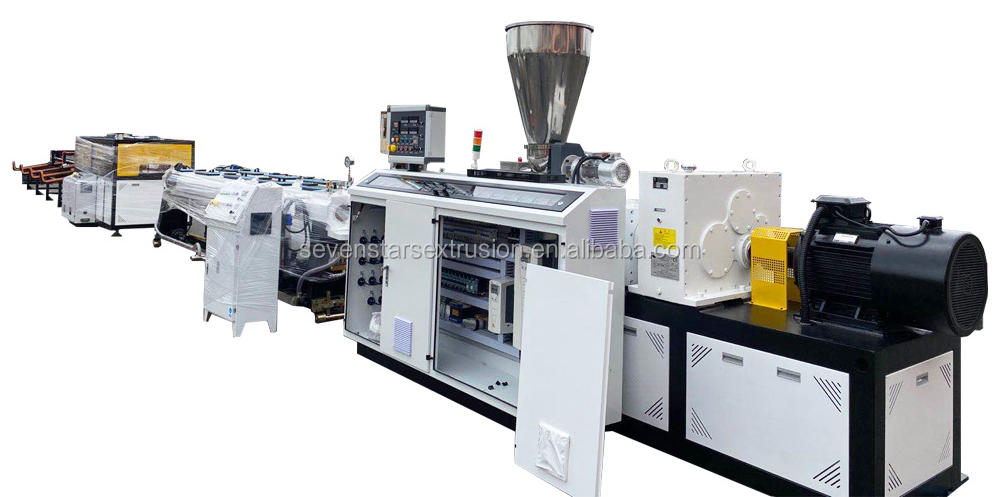

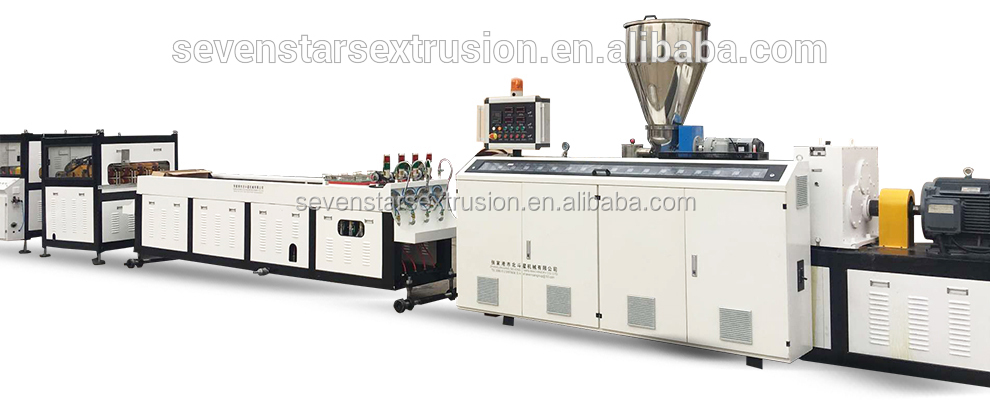

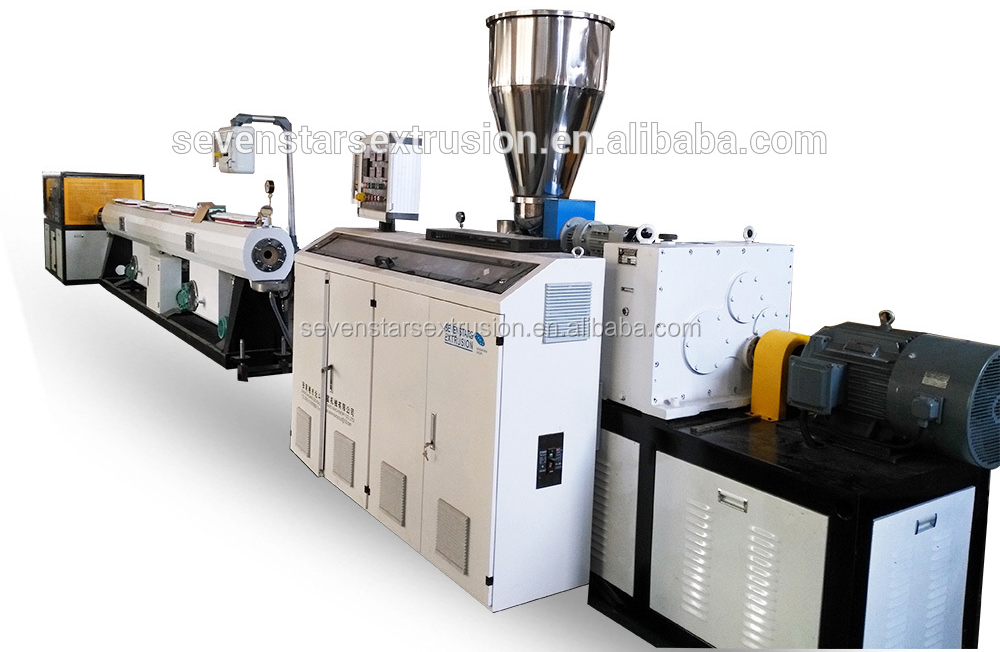

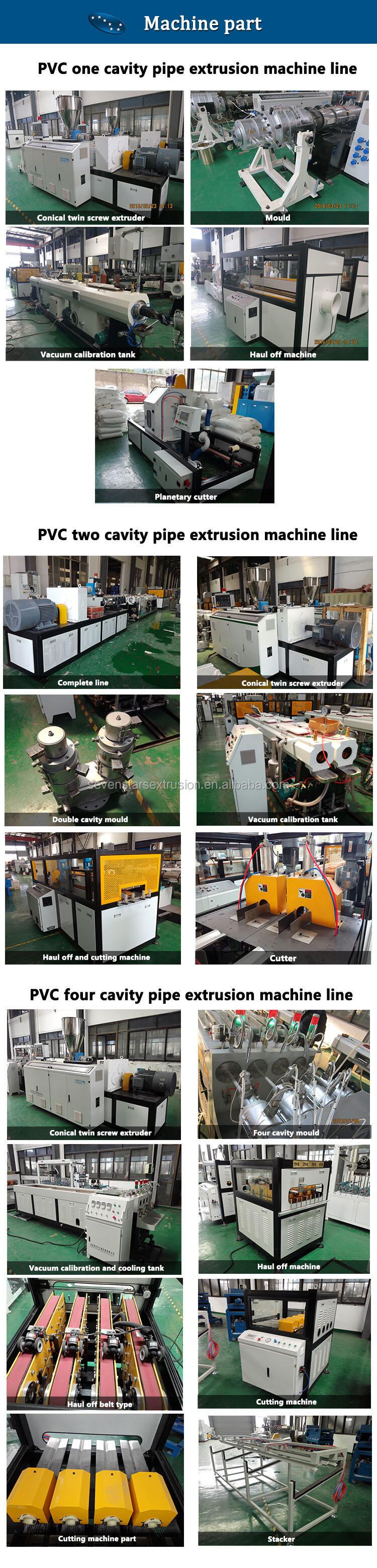

Detailed photo
