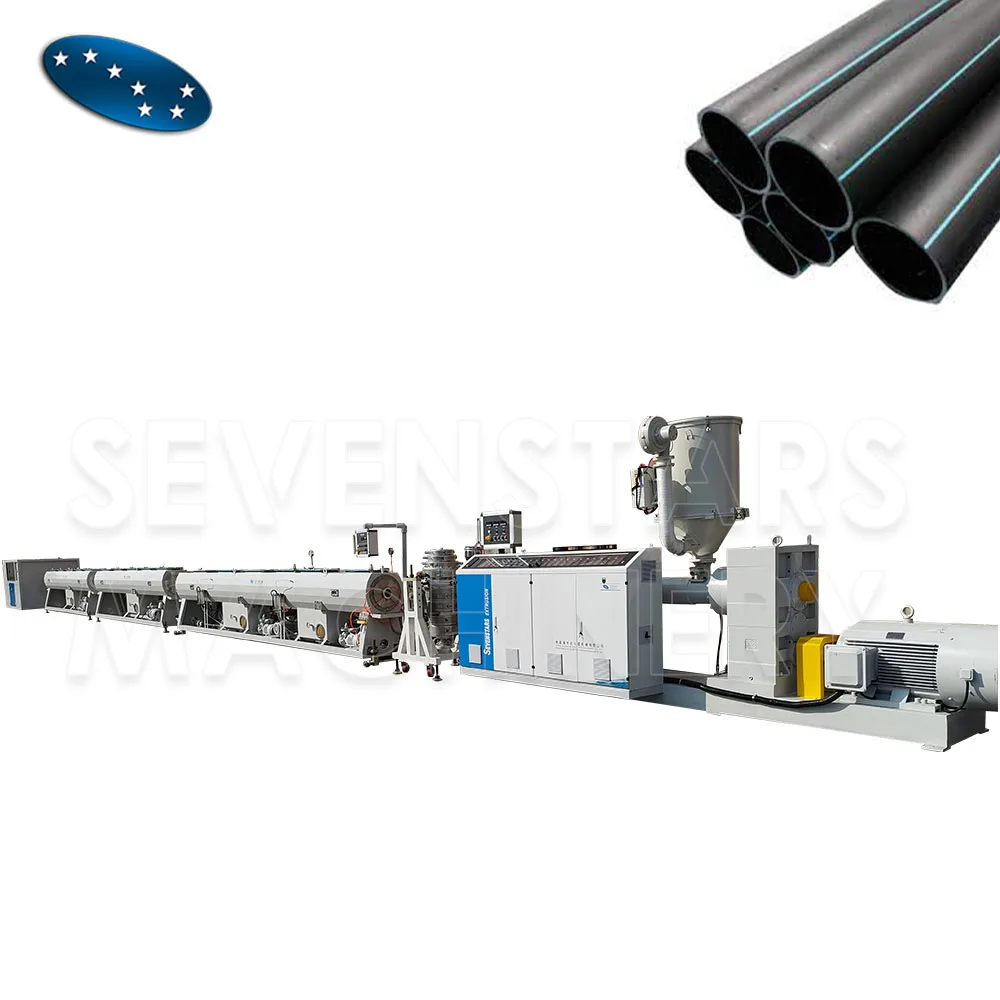

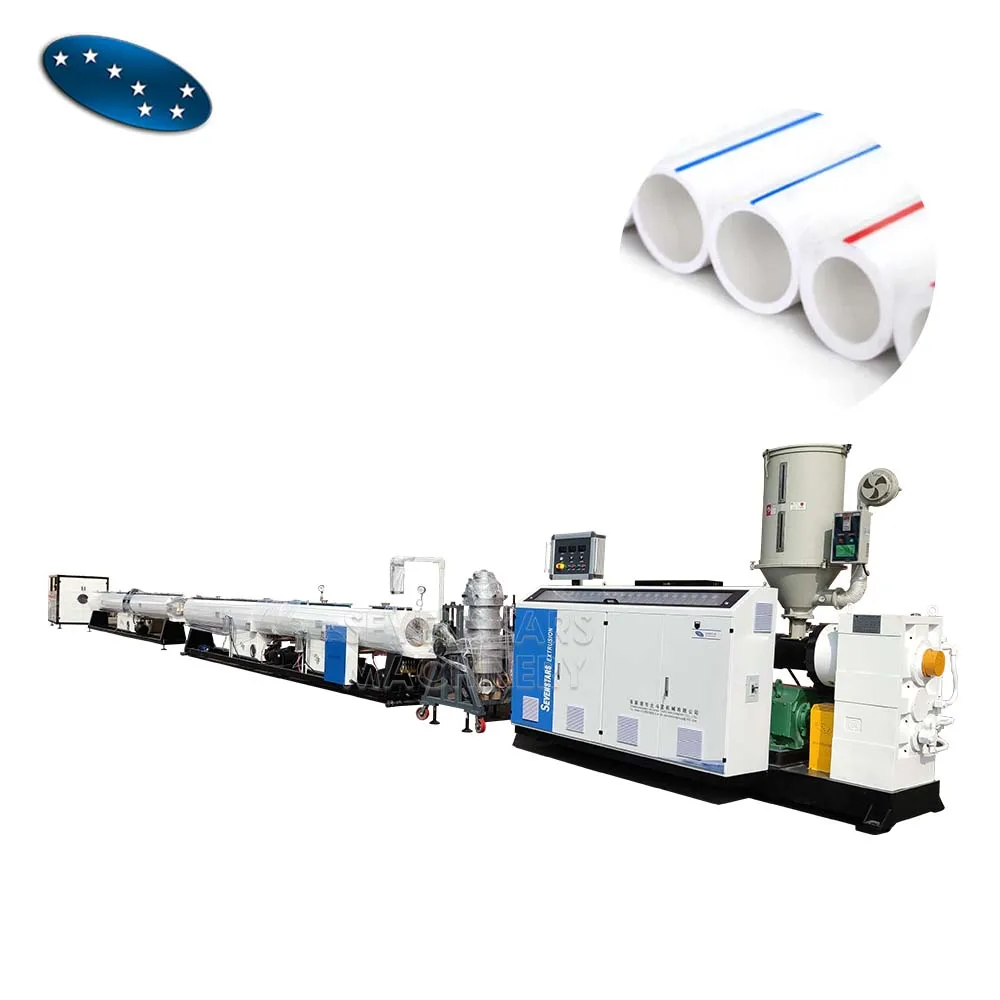

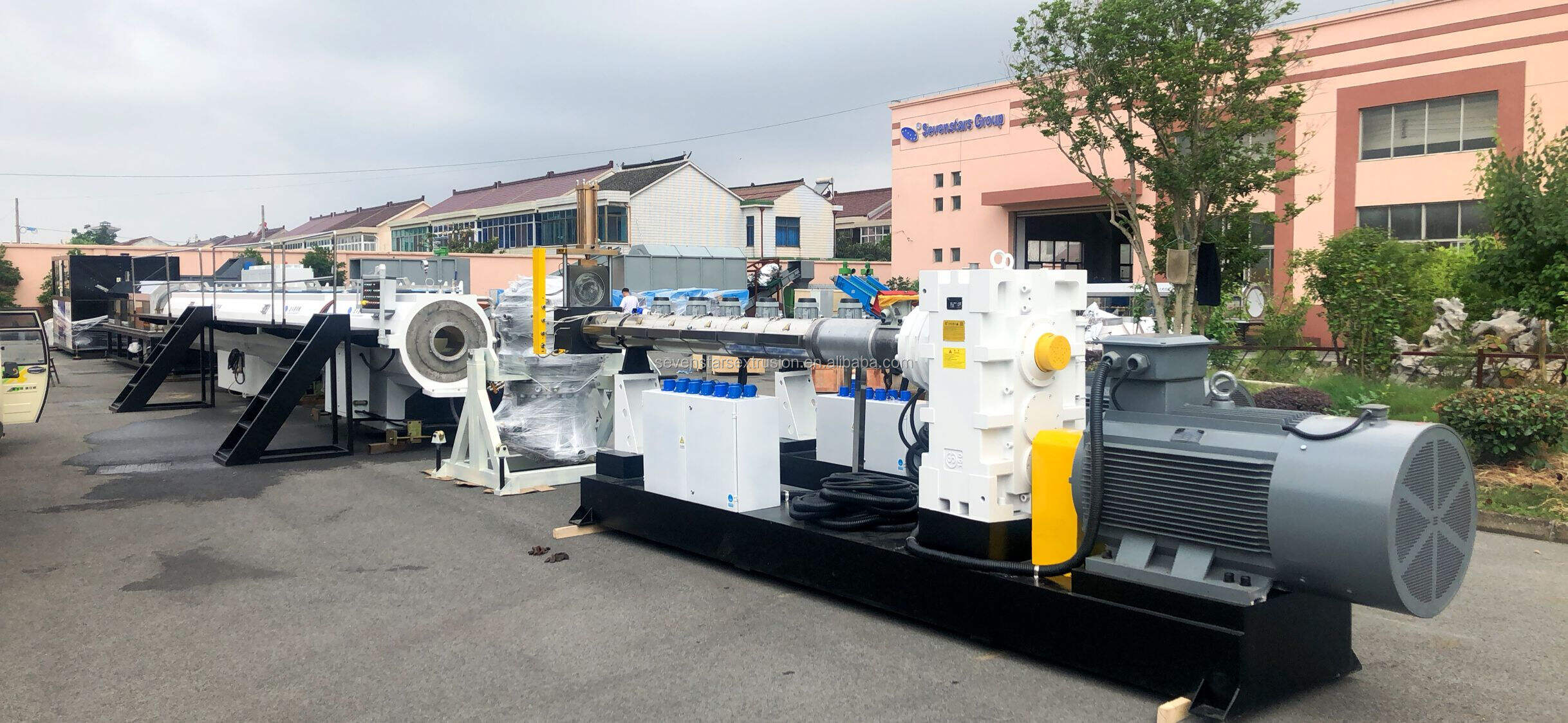

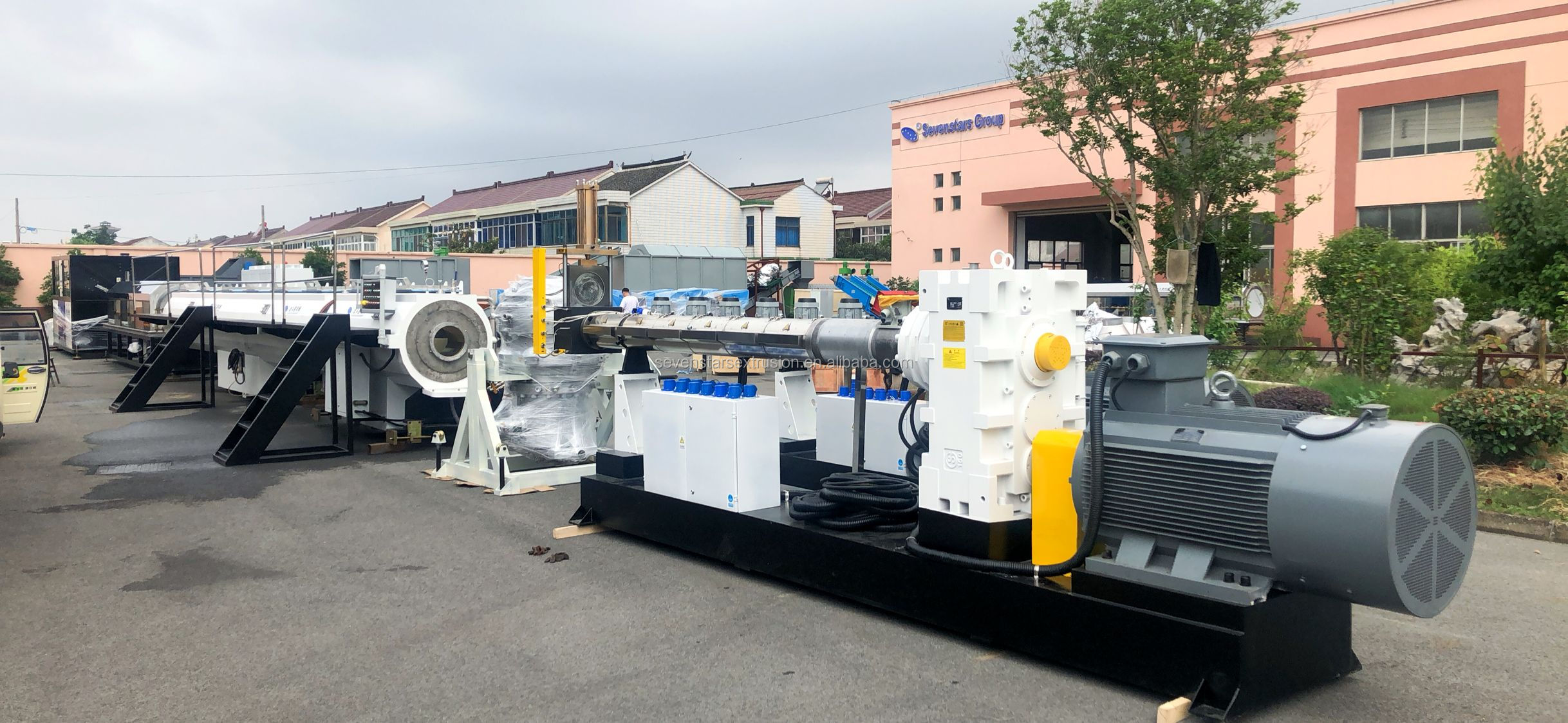

The Sevenstars Machinery 20-1200mm Water Pipe Extrusion Machine, including the 110mm PE Pipe Making Machine, is a reliable and efficient solution for producing a wide range of polyethylene (PE) water pipes. This machine is designed to meet the needs of manufacturers who require high-quality pipes for water supply, irrigation, and other plumbing applications.
Built with advanced technology and strong materials, the Sevenstars Machinery extrusion machine ensures consistent performance and durability. It can produce water pipes with diameters ranging from 20mm up to 1200mm, making it suitable for small to large-scale production. The 110mm PE Pipe Making Machine, part of this series, specializes in creating pipes with a diameter of 110mm, which is a common size for many water supply systems
One of the key features of the Sevenstars water pipe extrusion machine is its user-friendly design. It includes a high-precision screw and barrel system that helps in melting and mixing raw PE materials evenly. This results in smooth, strong pipes that resist cracking, wear, and pressure. The machine also comes with an advanced control panel, allowing operators to adjust temperature, speed, and other settings easily. This flexibility ensures the pipes meet specific requirements and industry standards.
The extrusion machine uses an efficient cooling system to solidify the pipes quickly after they are formed, which improves productivity and reduces production time. It is also equipped with a reliable haul-off unit that pulls the pipe steadily without damaging it. Afterward, a cutting machine accurately cuts the pipes to the desired lengths. Together, these systems make the pipe manufacturing process fast, accurate, and economical.
Sevenstars Machinery is known for its strong commitment to quality and customer satisfaction. This water pipe extrusion machine not only produces pipes that are durable and waterproof but also offers stable operation and low maintenance costs. It is suitable for companies looking to expand their production capacity or start a new water pipe manufacturing business.
The Sevenstars Machinery 20-1200mm Water Pipe Extrusion Machine, including the 110mm PE Pipe Making Machine, is a dependable and high-performance machine designed to produce high-quality polyethylene water pipes. Its wide size range, advanced features, and ease of use make it an excellent choice for manufacturers aiming to deliver durable pipes for water supply and irrigation projects

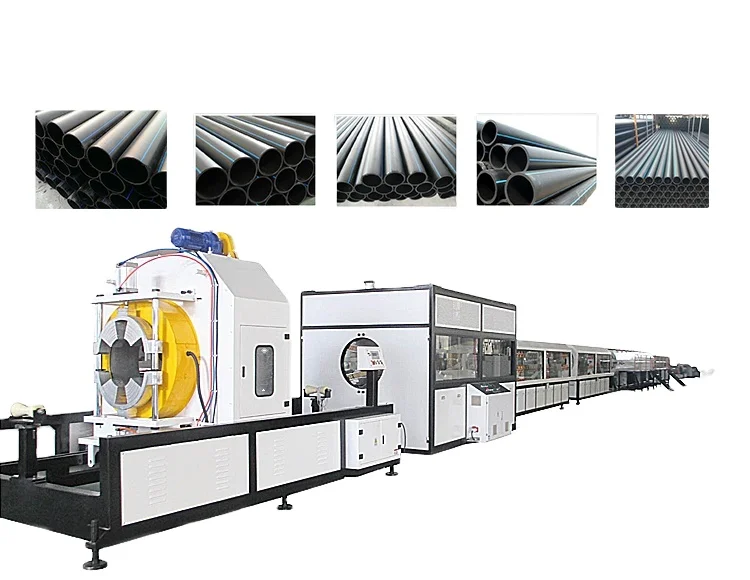

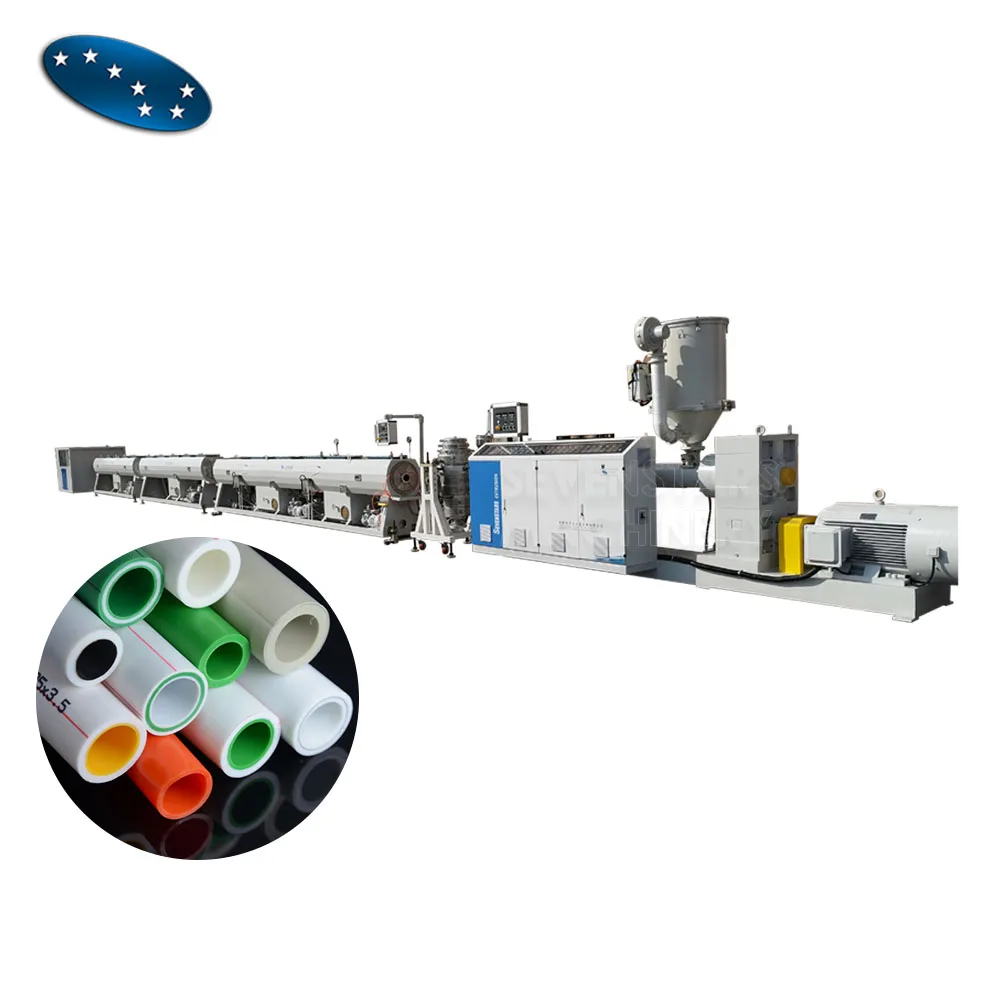

PE PPr pipe extrusion making machine extruder line can be used in PE PPr large diameter gas and water pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this PE PPr pipe extrusion line is a preferred gas and water pipe for ductwork system between city and its suburb. Large diameter HDPE LDPE PE pipes start to play very important role in the city water and gas supply systems
Characteristics:
1. Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h
2. Diameter: from 16 to 800mm

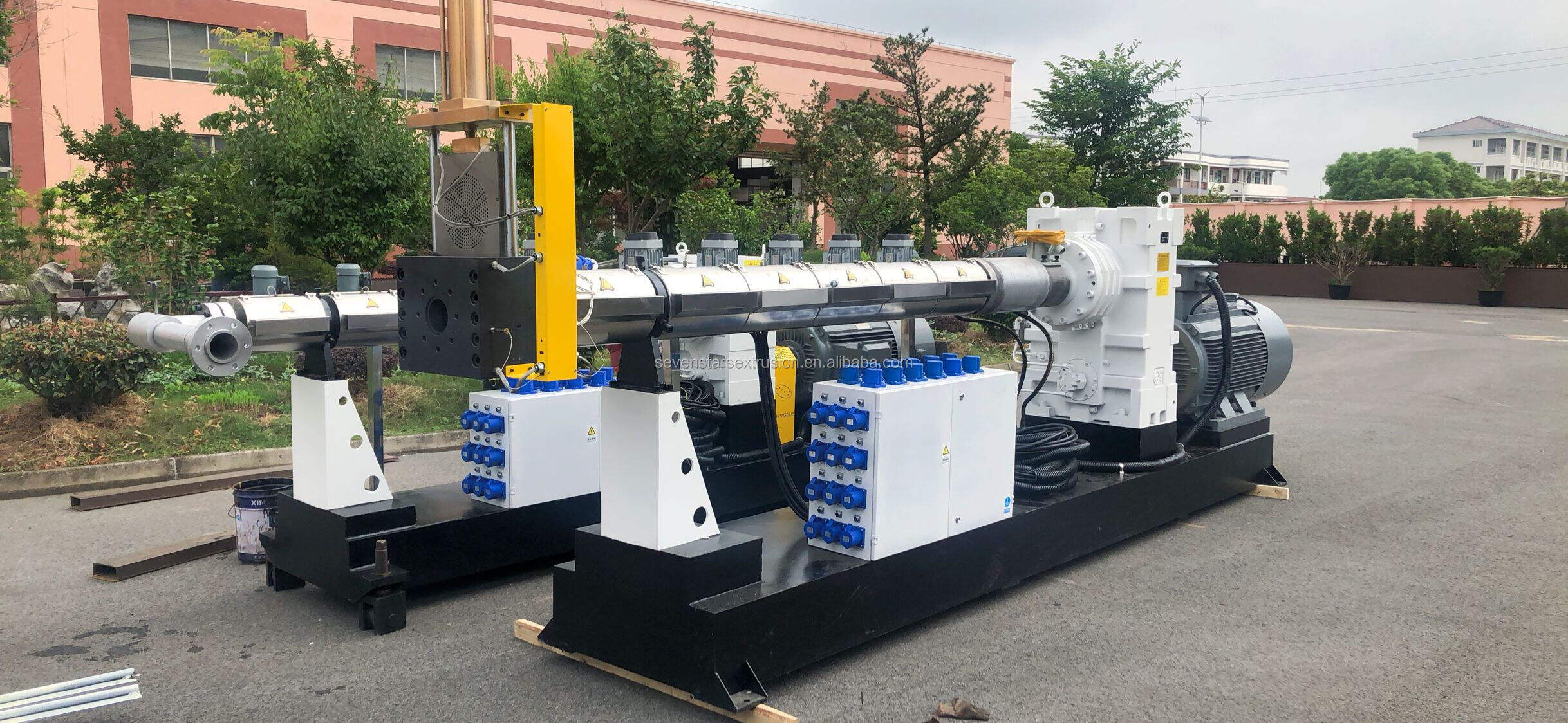

3. Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE PP PPR low temperature extrusion
production

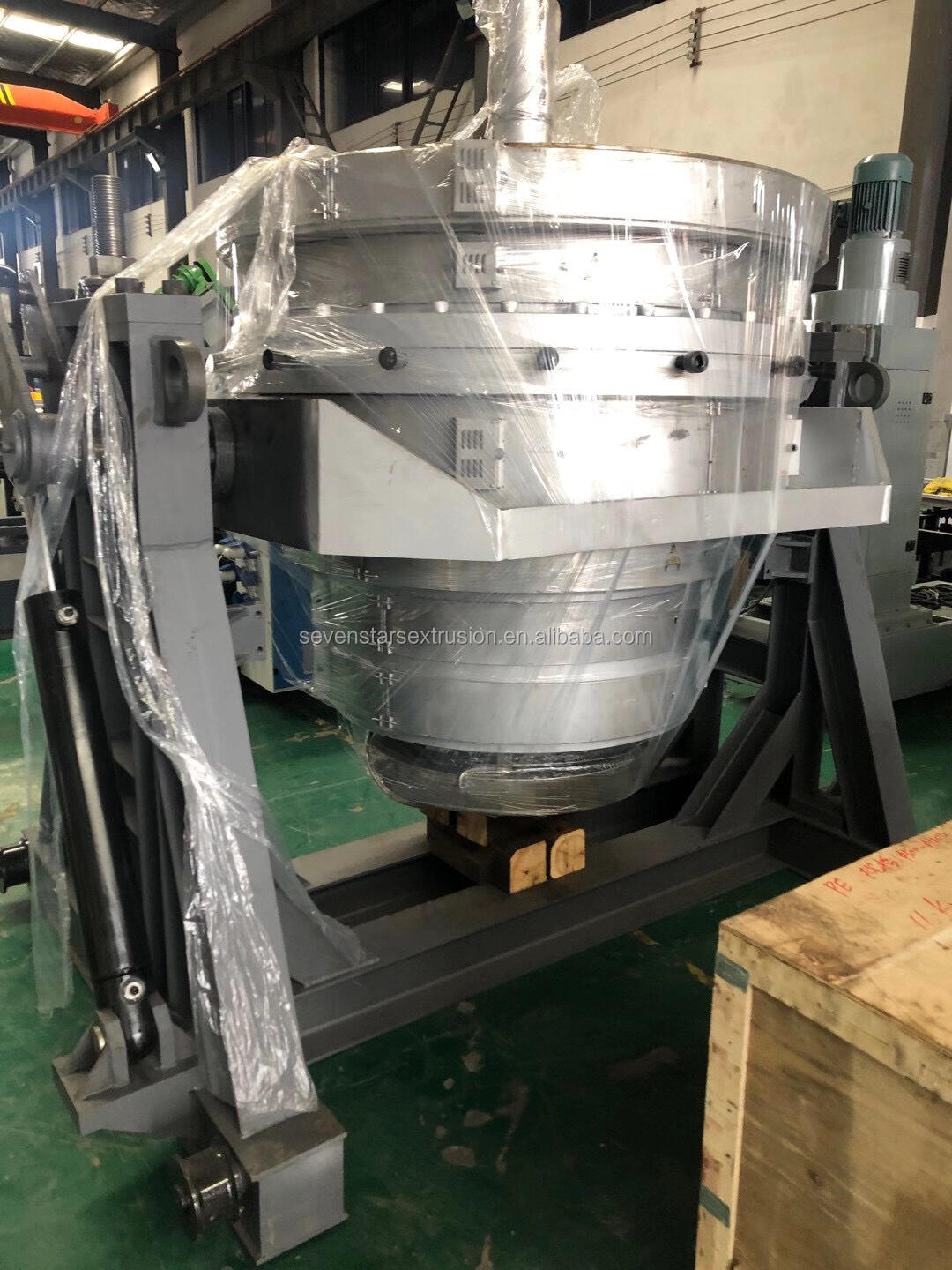

4. Specially-designed spiral moulds for PE PP PPR pipes with marking line, with inside oil controlling temperature system

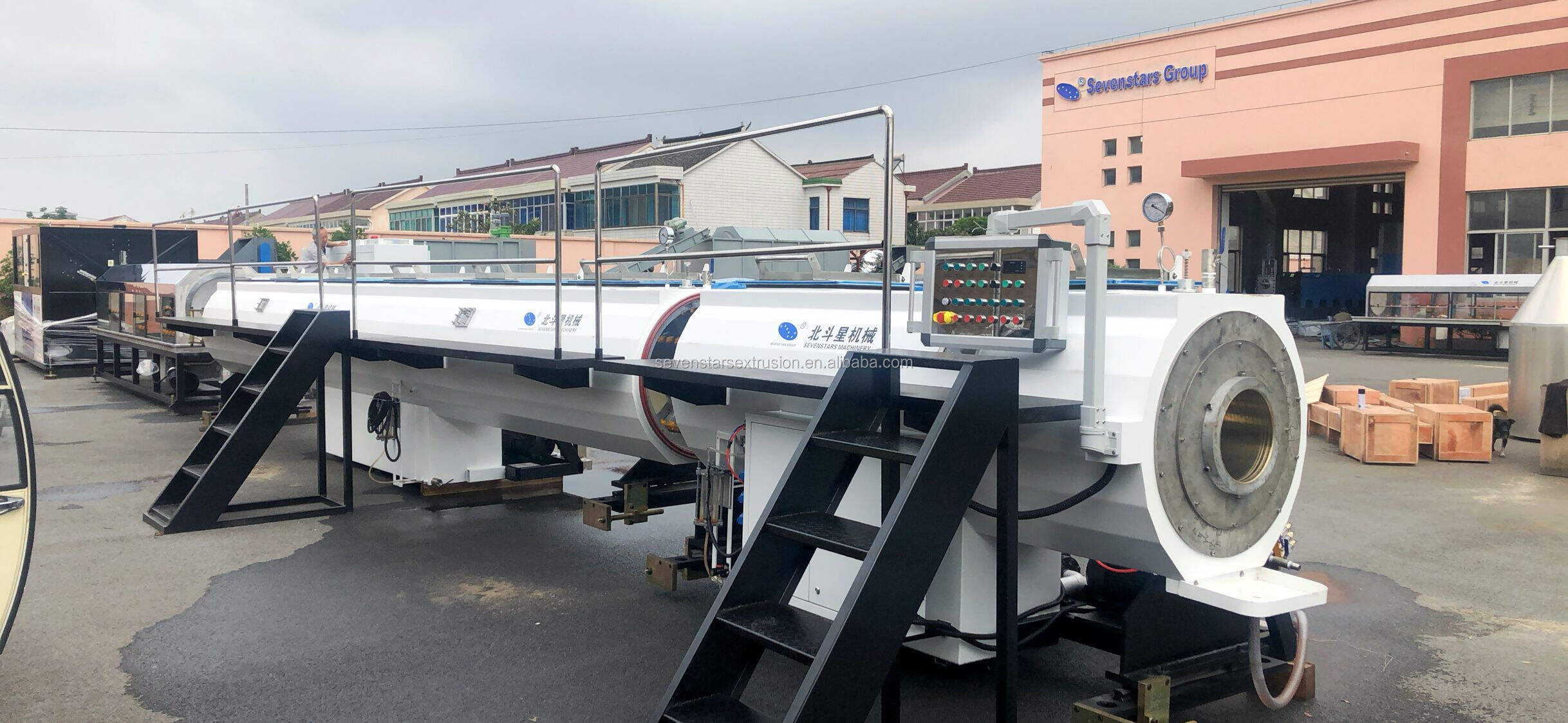

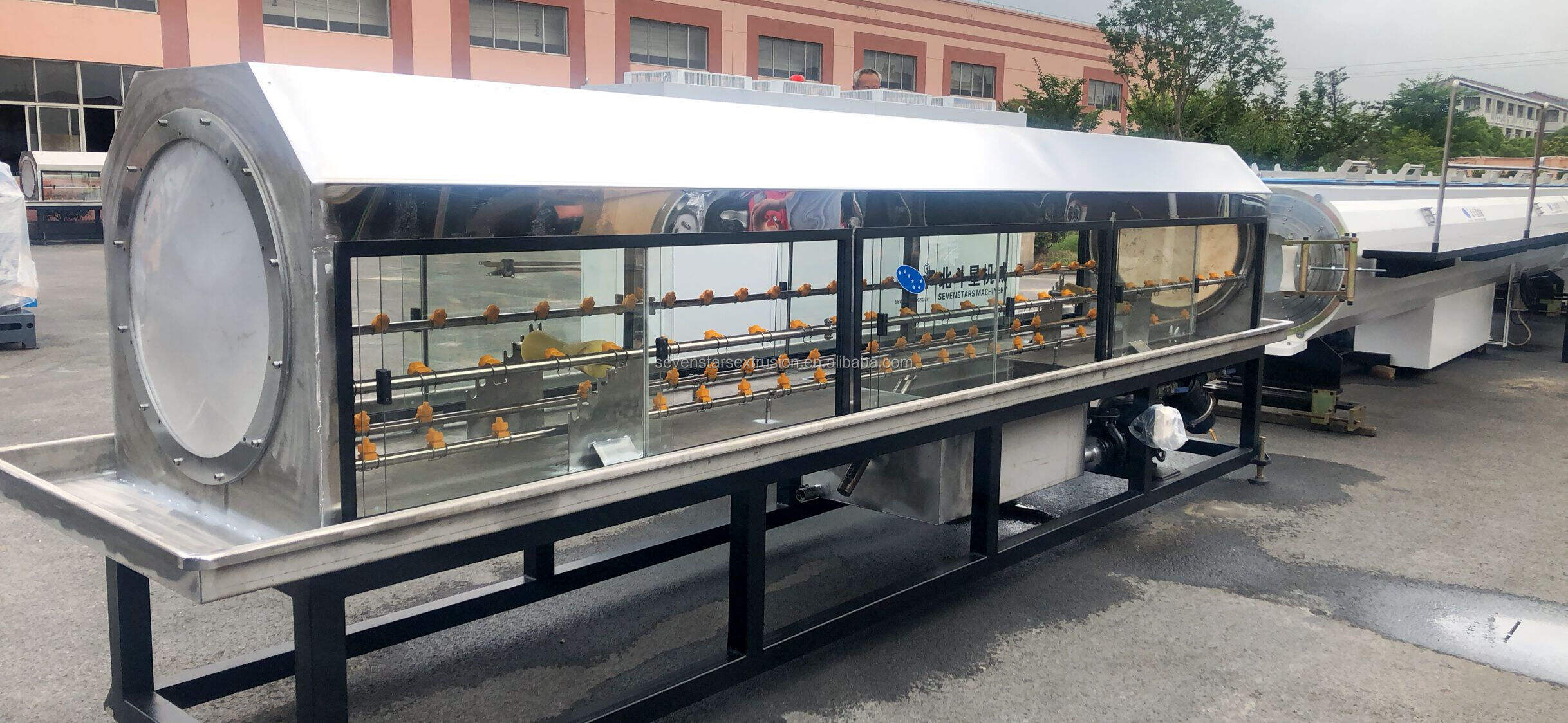

5. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes with marking line; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent

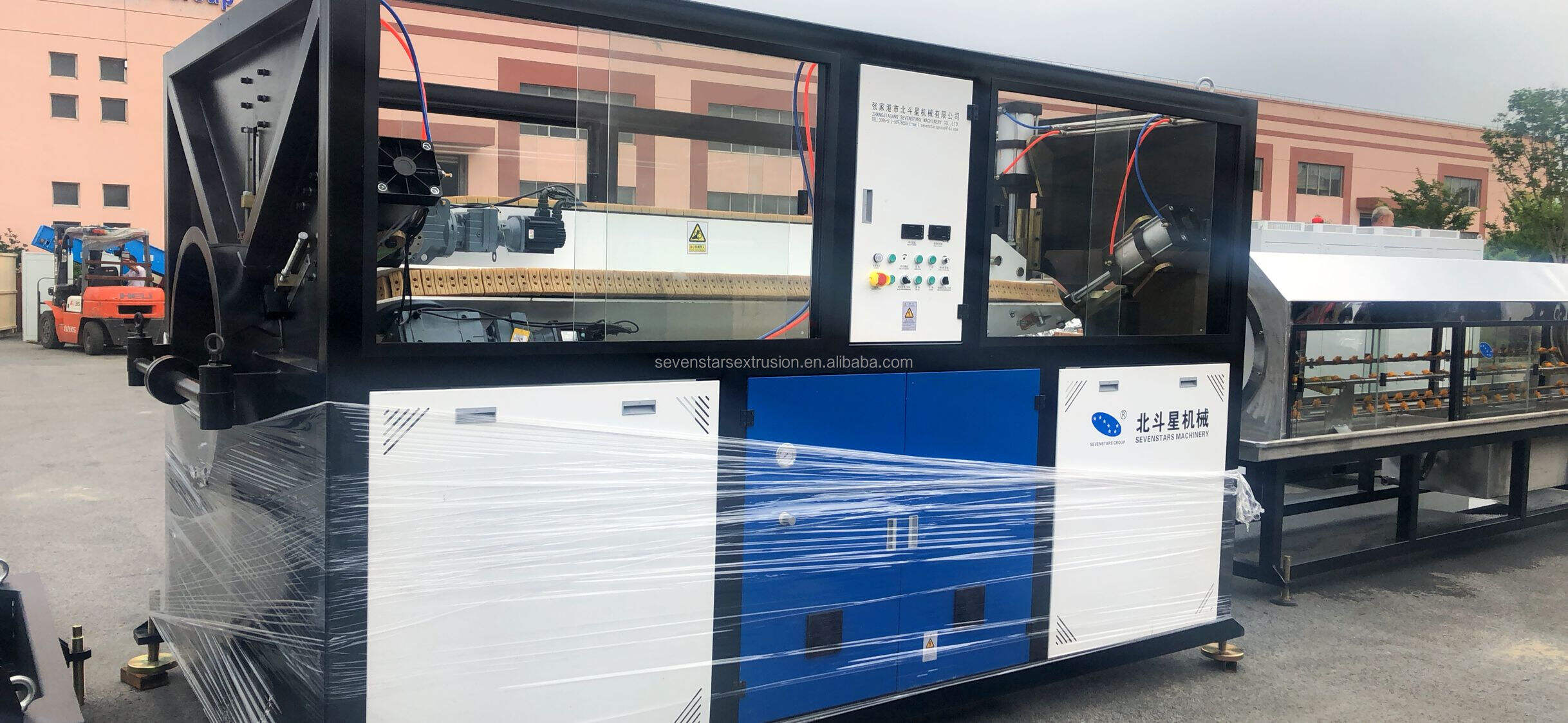

6. Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable

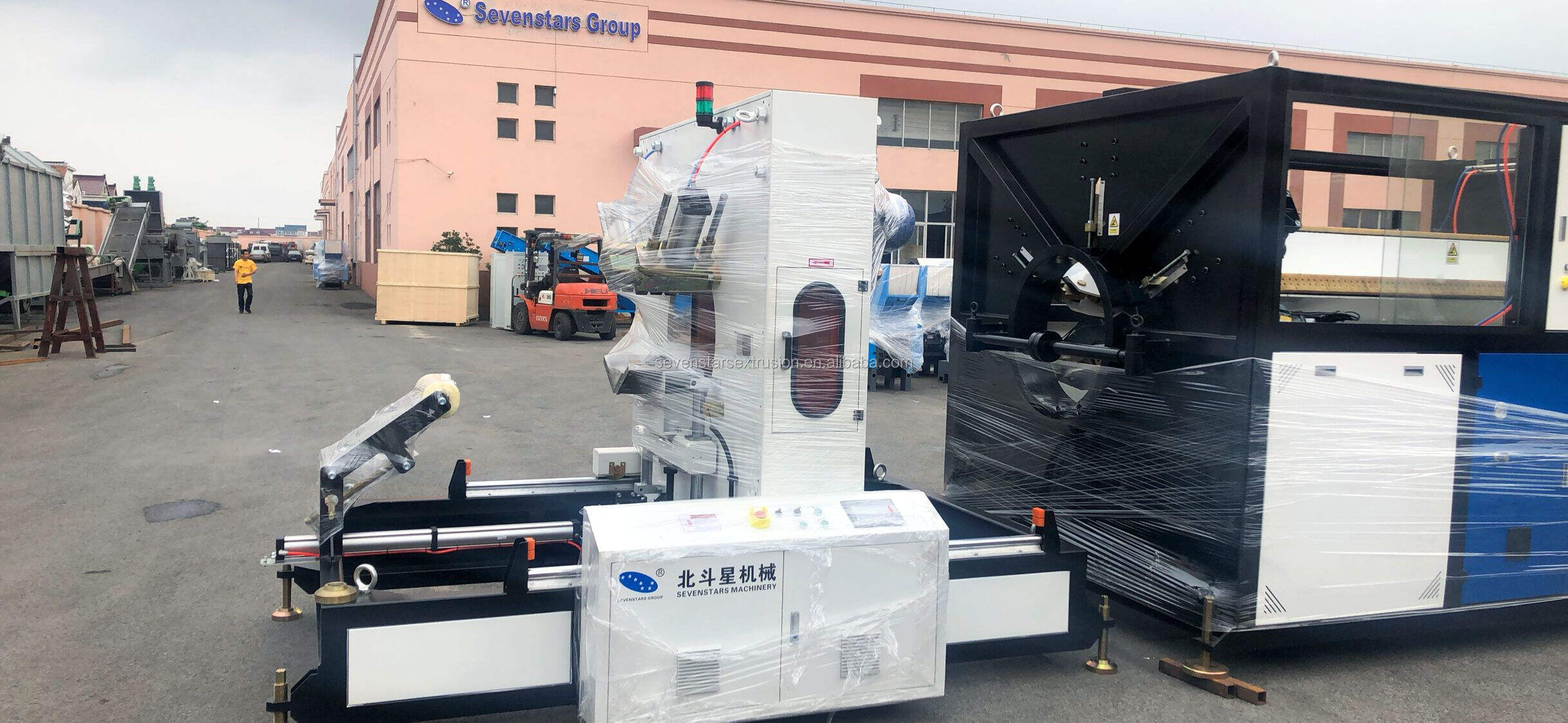

7. Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment
Flow chart of PE PPr pipe extrusion making machine line
PE granules Raw material + additive → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker
Pipe Range |
16-63mm |
20-110mm |
75-160mm |
90-250mm |
110-315mm |
160-450mm |
315-630mm |
500-800mm |
630-1200mm |
Extruder |
¢45mm |
¢60mm |
¢75mm |
¢75mm |
¢90mm |
¢90mm |
¢120mm |
¢150mm |
¢200mm |
Extruder Power |
AC30KW |
DC75KW |
DC110KW |
DC110KW |
DC160KW |
DC160KW |
DC280KW |
DC335KW |
DC400KW |
Extrusion Capacity |
60-100kg |
100-150kg |
250-300kg |
250-300kg |
350-400kg |
350-400kg |
650-700kg |
850-900kg |
1100-1500kg |
Max. Speed |
10m/min |
6m/min |
6m/min |
6m/min |
3m/min |
1.2m/min |
0.9m/min |
0.7m/min |
0.5m/min |
